✅ Wide Millimeter-Wave Frequency Coverage
The antenna operates from 18 GHz to 50 GHz, covering major 5G millimeter-wave bands such as 24 GHz, 28 GHz, and 39 GHz. It is suitable for RF and OTA testing of millimeter-wave communication terminals, automotive radar systems, and high-speed short-range wireless modules.
✅ High Port Isolation and Excellent Polarization Purity
The antenna adopts an integrated orthogonal dual-polarized waveguide structure, providing port isolation of ≥ 27 dB and cross-polarization discrimination of ≥ 20 dB.
Low coupling between polarization channels makes it suitable for OTA performance evaluation of millimeter-wave MIMO devices, phased-array antennas, and dual-polarized wireless terminals.
✅ Precision-Machined Aluminum Alloy Construction
The antenna features an integrated precision-machined aluminum alloy structure with low RF loss and stable radiation characteristics at millimeter-wave frequencies. Its robust mechanical design supports long-duration continuous testing in RF and OTA anechoic chambers.
✅ Stable RF Matching and Directional Radiation Performance
With a VSWR of ≤ 2 and a rated gain of 15 dBi, the antenna provides stable impedance matching, focused directional radiation, and repeatable measurement performance for far-field OTA and compact antenna test range applications.
✅ Compact Square Aperture Design
The antenna features a compact 40 mm × 40 mm square aperture, offering a smaller footprint than the previous 43.2 mm model. Its compact form factor facilitates multi-antenna array configurations and flexible integration with mounting fixtures and positioning systems.
| Parameter | Specification |
|---|---|

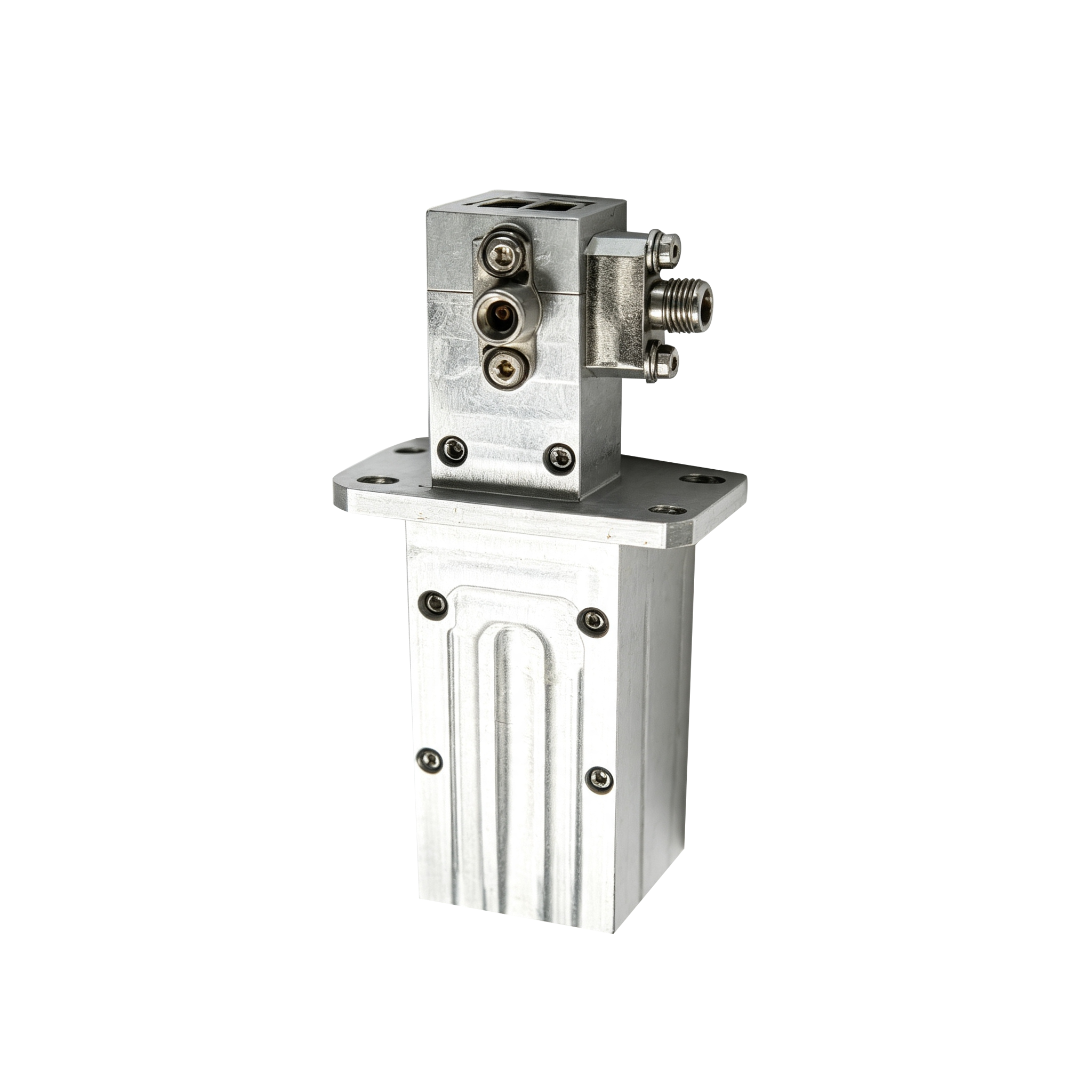

| Product Name | Millimeter-Wave Dual-Polarized Horn Antenna |
| Dimensions | 40 mm × 40 mm × 87.7 mm |
Application | Millimeter-Wave OTA / RF Anechoic Chamber Transmit and Receive Testing |
| Material | Aluminum Alloy |
| Frequency Range | 18 GHz ~ 50 GHz |
| Standing Wave Ratio (VSWR) | ≤ 2 |
Antenna Gain | 15 dBi |
Polarization | Dual Linear Polarization |
Port Isolation | ≥27 dB |
Cross-Polarization Discrimination (XPD | ≥20 dB |
OTA TRP/TIS and radiated RF performance testing of 5G millimeter-wave smartphones and automotive wireless communication modules
RF performance verification of millimeter-wave radar systems, phased-array antennas, and high-speed wireless transmission modules
Polarization diversity, channel isolation, and beam-characteristic testing of MIMO devices within the 18–50 GHz range
Reference transmit/receive antenna for millimeter-wave far-field OTA and compact antenna test range systems
