Core Advantages

✅ Optimized for 2.4 GHz Wireless Applications

The antenna operates from 2395 MHz to 2485 MHz, covering the mainstream 2.4 GHz Wi-Fi and Bluetooth test range. It is suitable for RF performance verification of Bluetooth devices, 2.4 GHz Wi-Fi IoT modules, wireless keyboards and mice, smart home devices, and other short-range wireless terminals.

✅ Integrated H/V Orthogonal Dual-Polarization Design

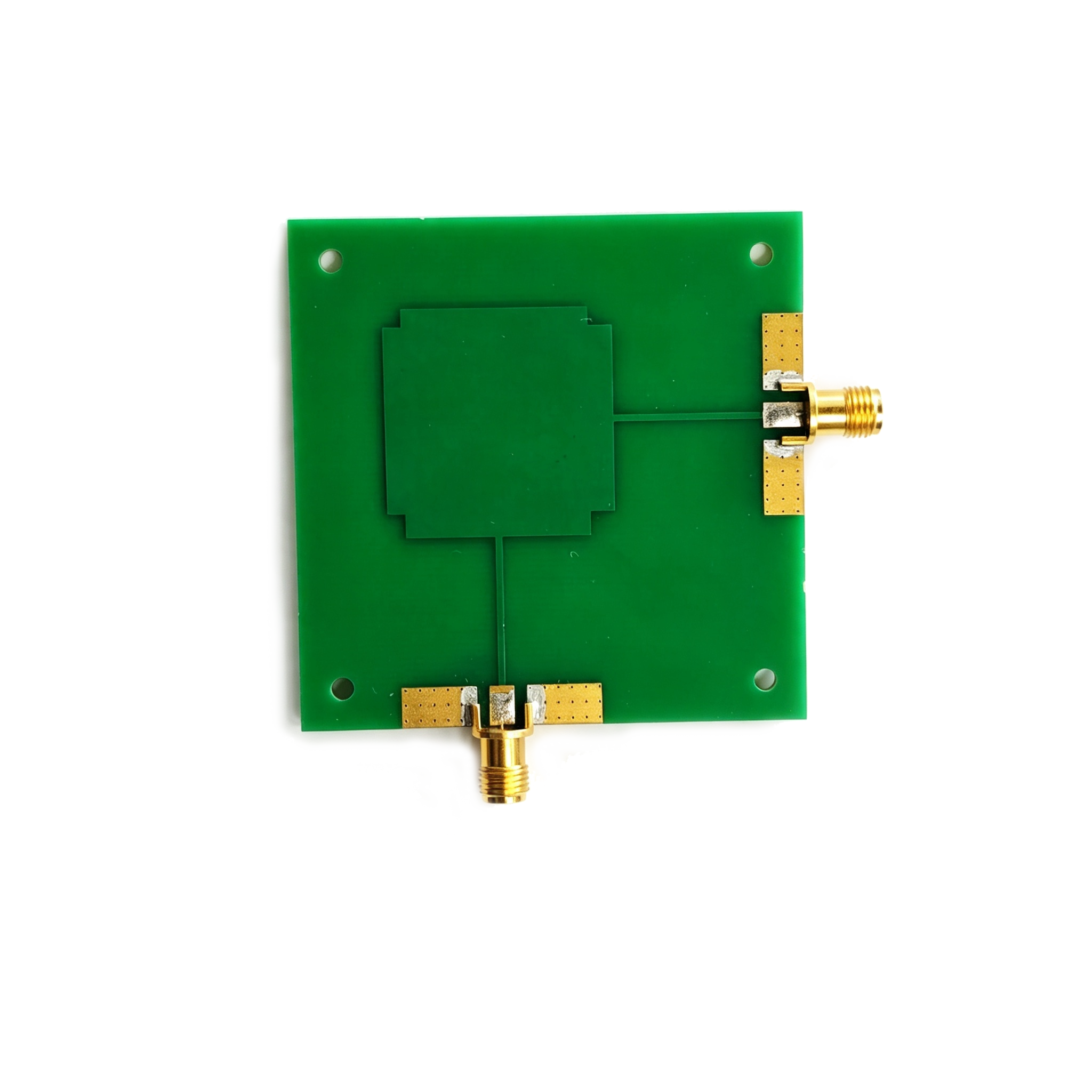

A single PCB integrates two independent polarization ports for horizontal (H) and vertical (V) polarization. The two ports support RF signal reception in orthogonal polarization directions, making the antenna suitable for OTA testing of MIMO devices and antenna-diversity terminals without replacing the antenna.

✅ Ultra-Thin and Compact PCB Structure

With a thickness of only 2 mm and compact dimensions of 60 mm × 60 mm, the antenna is well suited for compact RF/OTA anechoic chambers and multi-antenna array configurations. Its lightweight structure simplifies mounting and minimizes installation space.

✅ Cost-Effective FR-4 Solution

The antenna uses a standard FR-4 substrate and mature PCB manufacturing processes, providing controlled cost, reliable production consistency, and suitability for both production-line quality inspection and routine laboratory testing.

✅ Stable RF Matching Performance

With a VSWR of ≤ 2 across the specified operating range, the antenna provides stable RF matching and repeatable measurement performance for OTA applications such as TRP and TIS testing.

Specifications

Application Scenarios

• OTA radiated performance testing of 2.4 GHz Wi-Fi, Bluetooth, BLE, and IoT modules

• RF performance verification of wireless earphones, smart home devices, remote controls, and other short-range wireless terminals

• Polarization diversity and channel isolation evaluation of 2.4 GHz MIMO devices

• Reference transmit/receive antenna for compact RF/OTA anechoic chambers
