Dual-Polarized Horn Antenna_Jiangsu Liankang Information Co., Ltd

Content

Core Advantages

✅ Wide Frequency Coverage for Multi-Standard Terminal Testing

The 2.2–7 GHz operating range covers major ISM and mobile communication bands, including 5G Sub-6 GHz, Wi-Fi 2.4 GHz / 5 GHz, and Bluetooth. A single antenna can support OTA radiated performance testing for multiple categories of wireless terminals.

✅ Standard Dual-Polarized Horn Structure

The antenna adopts a classic square horn design with high manufacturing consistency and stable radiation patterns, making it suitable for use as a standard reference transmit/receive antenna in RF and OTA anechoic chambers.

Two orthogonal RF ports support independent horizontal and vertical linear polarization operation.

✅ Excellent Polarization Isolation

With port isolation of ≥ 25 dB and cross-polarization discrimination of ≥ 20 dB, the antenna provides low coupling between polarization channels. It is suitable for channel isolation and polarization-related testing of MIMO multi-antenna devices and diversity reception systems.

✅ Machined Aluminum Alloy Structure

The integrated aluminum alloy construction provides low RF loss, high mechanical strength, and excellent structural stability. It is suitable for long-duration continuous testing in RF/OTA chambers and supports flexible integration with mounting fixtures and antenna positioning systems.

✅ Stable Directional Radiation Performance

With a VSWR of ≤ 2 and a rated gain of 12.9 dBi, the antenna provides stable directional radiation and beam characteristics, supporting consistent signal quality and repeatable OTA measurements such as TRP and TIS testing.

Specifications

Parameter	Specification

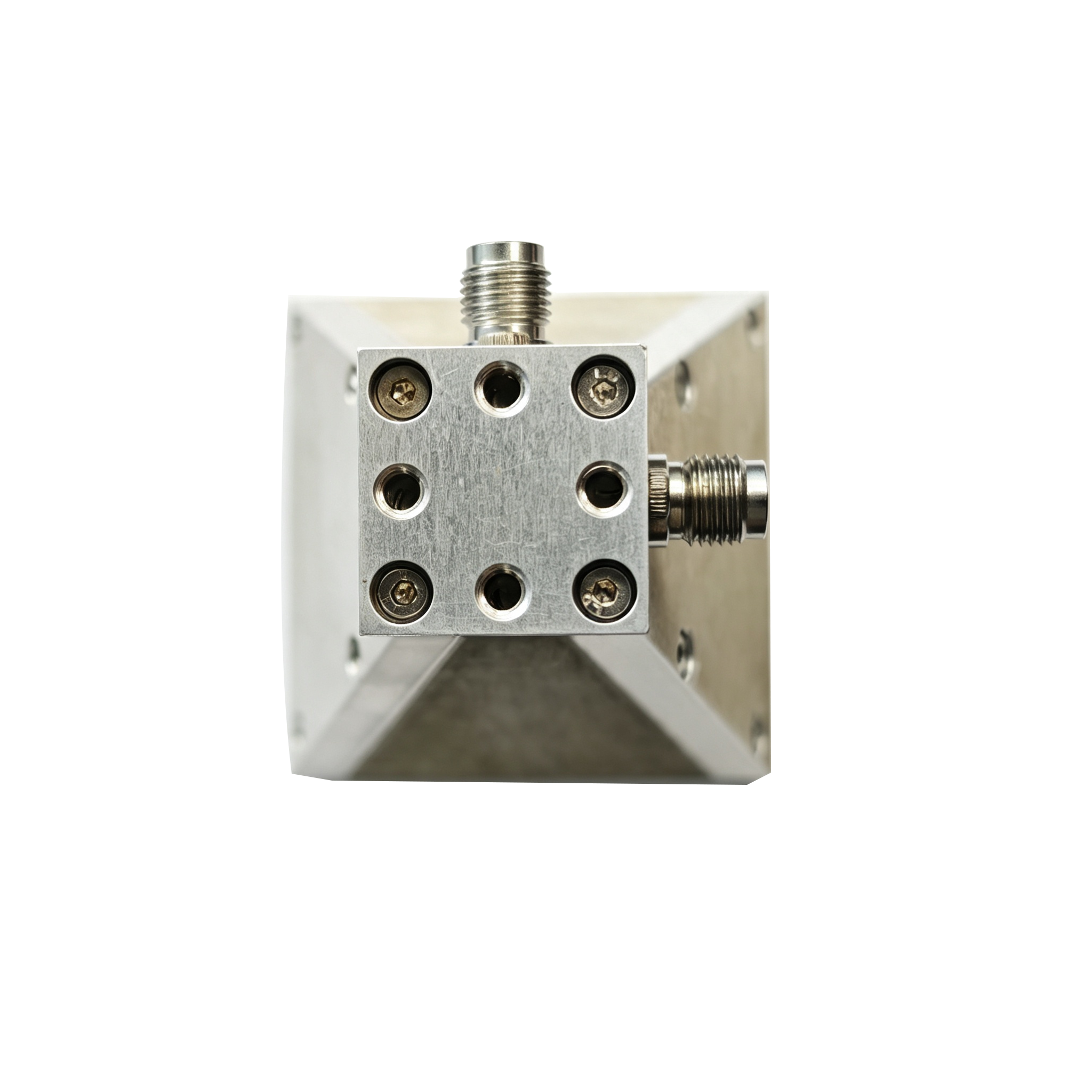

Product Name	Dual-Polarized Horn Antenna
Dimensions	113 mm × 113 mm × 123 mm
Application	OTA / RF Anechoic Chamber Transmit and Receive Testing
Material	Aluminum Alloy
Frequency Range	2.2 GHz ~ 7 GHz
Standing Wave Ratio (VSWR)	≤ 2
Antenna Gain	12.9 dBi
Polarization	Dual Linear Polarization
Port Isolation	≥ 25 dB
Cross-Polarization Discrimination (XPD)	≥ 20 dB

Application Scenarios

OTA radiated RF testing of smartphones, CPE devices, IoT modules, and other 5G / Wi-Fi wireless terminals
MIMO multi-antenna terminal testing and polarization diversity performance verification
RF reference measurement and calibration within the 2.2–7 GHz frequency range
Reference antenna applications in far-field RF/OTA anechoic chambers
Radiated transmit and receive sensitivity testing of consumer electronics and automotive wireless terminals
