Product Overview

This single-port USB Type-C RF filter connector is part of the USBx series and is designed for high-speed data and power feedthrough in shielded RF and EMC test environments.

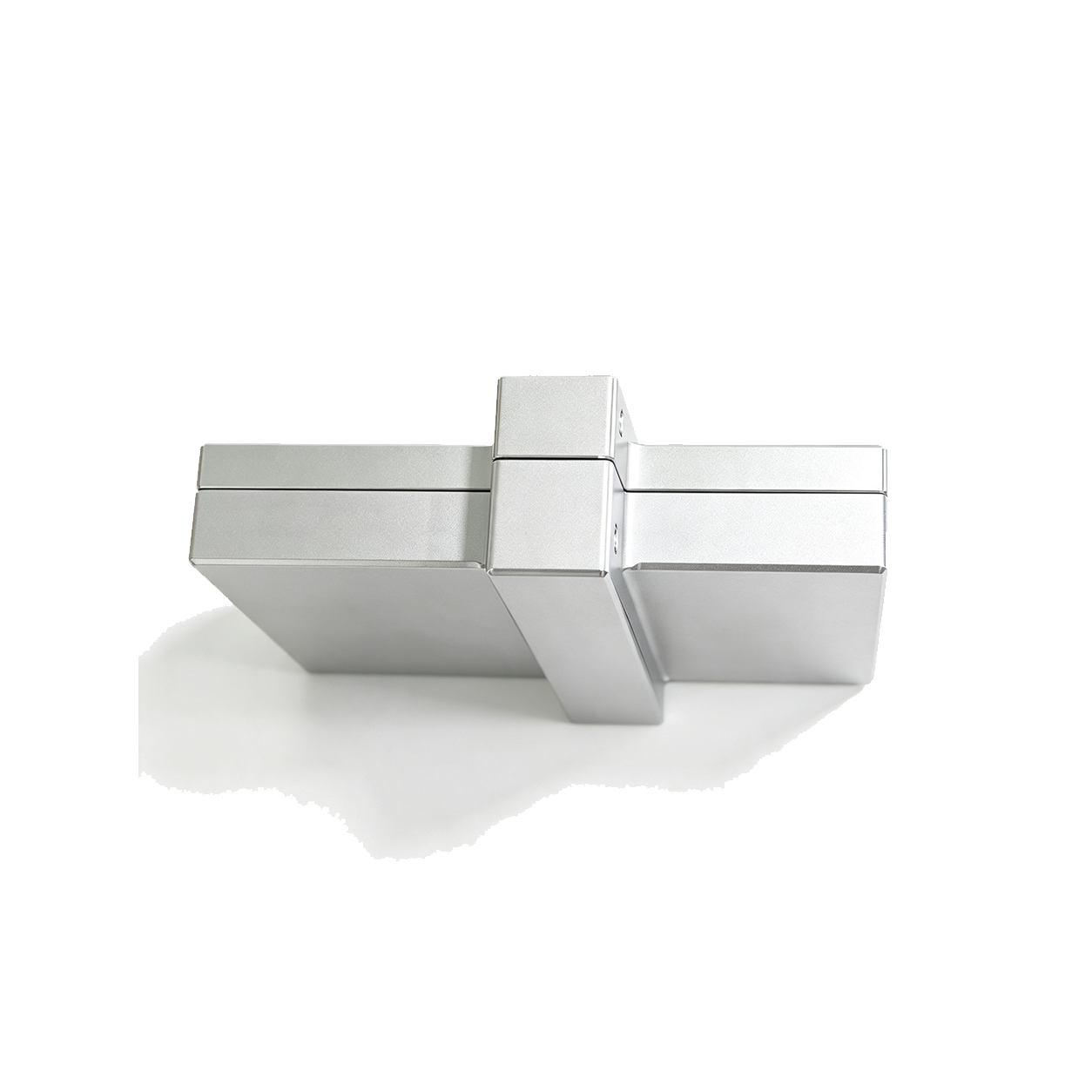

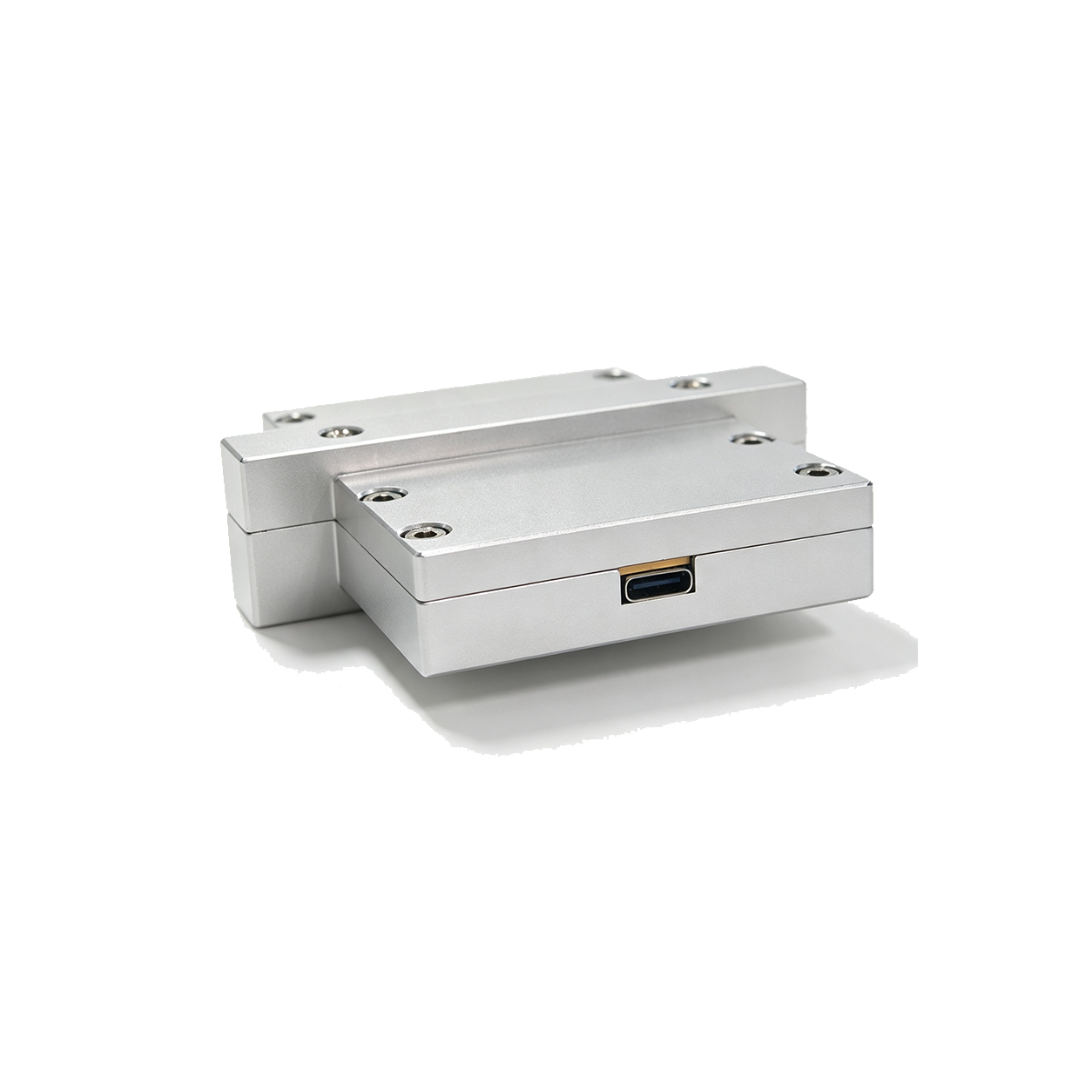

It features a USB Type-C female-to-female pass-through interface and a fully enclosed, precision-machined aluminum alloy shielding enclosure. Installed through the wall of a shielded box or RF/EMC test chamber, the connector enables high-speed data transmission and power delivery between the inside and outside of the enclosure.

While supporting data rates of up to 10 Gbit/s and power delivery up to 20 V / 5 A, the built-in RF filtering structure helps suppress conducted RF interference and RF leakage along connected cables, maintaining the shielding effectiveness of the test enclosure.

The connector is suitable for RF, fast-charging, high-speed data, and EMC testing of smartphones, TWS earbuds, smart wearables, portable electronic devices, and other USB Type-C products.

Specifications

Typical Application Scenarios

• Single-station RF automated testing of smartphones, smart wearables, TWS earbuds, and other USB Type-C devices

• USB Type-C fast-charging tests, high-speed data communication, device debugging, and signal feedthrough in shielded environments

• RF and EMC testing of consumer electronic devices within the 700 MHz–12 GHz frequency range

• Combined data and power feedthrough for compact shielded boxes with limited interface space

• High-speed USB Type-C signal routing and RF isolation in RF/EMC test chambers

Selection Tips

This product is part of the USBx series of RF filter connectors. Single-port USB 2.0, USB 3.0, and multi-port USB Type-C models are also available.

USB Type-C interfaces can also be combined with RJ45, BNC, DC power, XLR audio, and other connector types to create customized multi-interface RF filter connectors for specific test system requirements.
