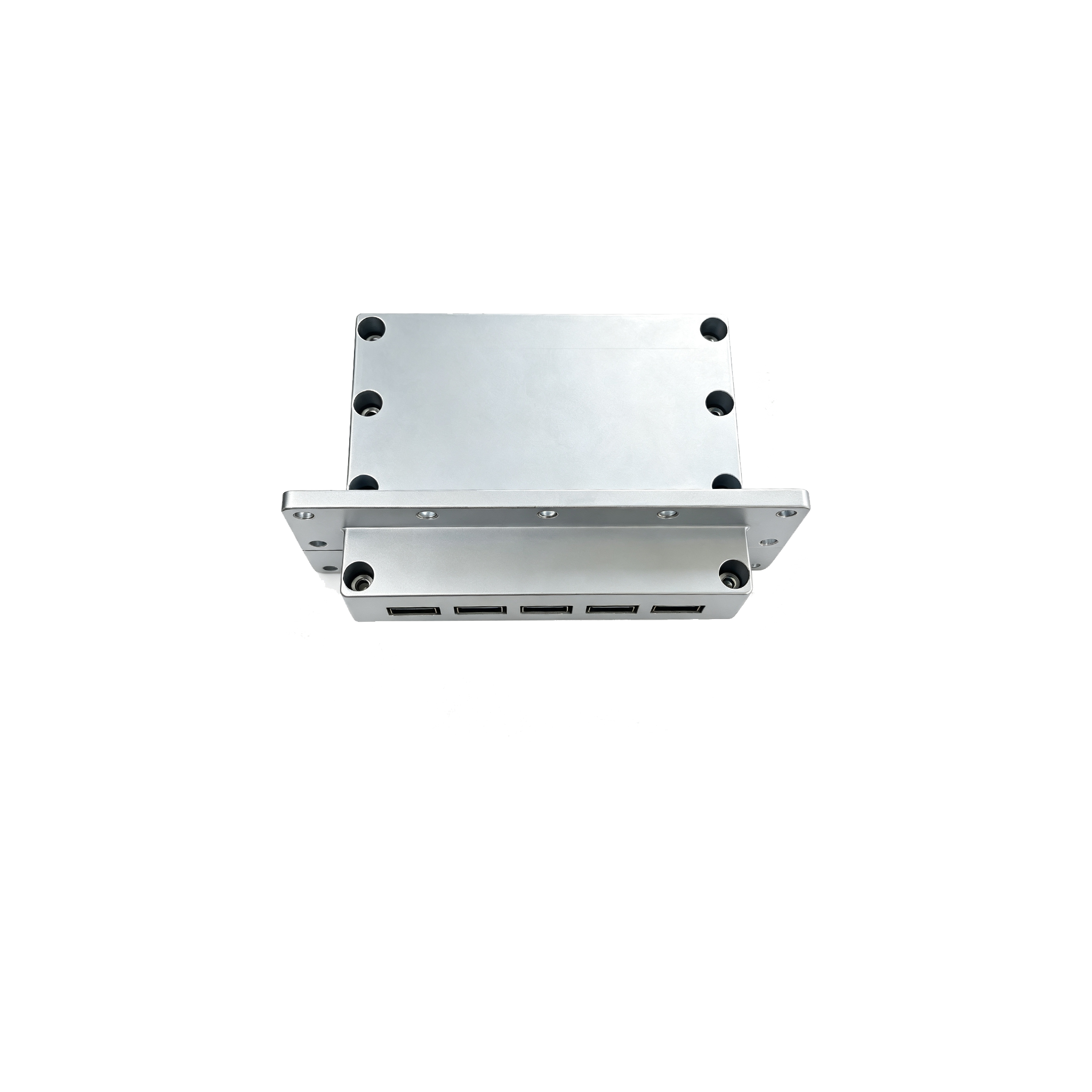

This 5-port USB 3.0 RF filter connector is designed for high-speed USB signal feedthrough and RF isolation in shielded test environments.
It integrates five standard USB 3.0 Type-A female ports within a fully enclosed, precision-machined aluminum alloy shielding enclosure. Installed through the wall of a shielded box or RF/EMC test chamber, the connector enables high-speed USB data transmission between the inside and outside of the enclosure.
While supporting USB 3.0 data rates of up to 5 Gbit/s, the built-in RF filtering structure helps suppress conducted RF interference and RF leakage along USB cables, maintaining the shielding effectiveness of the test enclosure.
The connector is suitable for RF and EMC testing of wireless digital products, smart terminals, audio/video equipment, and other consumer electronic devices.
| Parameter Classification | Parameter item | Technical indicators |
|---|---|---|
| RF parameters | Operating frequency band | 700MHz ~ 12GHz |
| Isolation | ＞70dB | |
| EE Electrical Parameters | Rated electrical specifications | 5V 0.9A |
| Maximum transmission speed | 5Gbit/s（USB3.0） | |
| Structural parameters | Interface form/quantity | USB 3.0 Type A Female Head/5 Ports |
| Machine overall size | 120mm*98mm*60mm | |
| Installation hole specifications | 12- Φ 4.4 through-hole |
Automated RF testing of smart wearables, wireless headphones, tablets, and other consumer electronic devices in shielded boxes
High-speed data communication, device programming, and debugging in shielded test environments
RF and EMC testing of wireless terminals within the 700 MHz–12 GHz frequency range
Multi-channel USB signal feedthrough for automated production-line test systems
High-speed USB signal routing and RF isolation in RF/EMC test chambers
