Product Overview

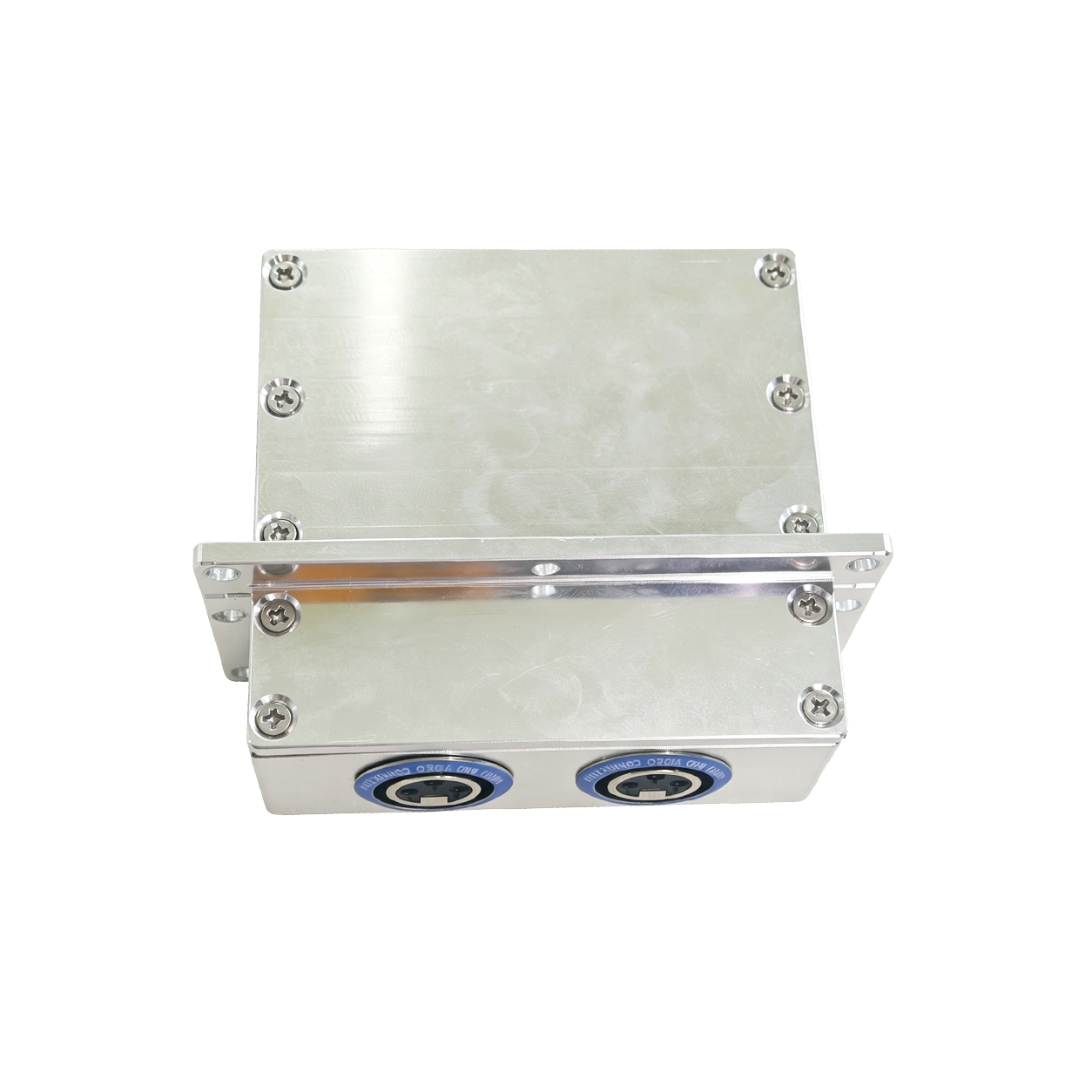

This dual-channel XLR RF filter connector is designed for balanced audio signal feedthrough and RF isolation in shielded test environments.

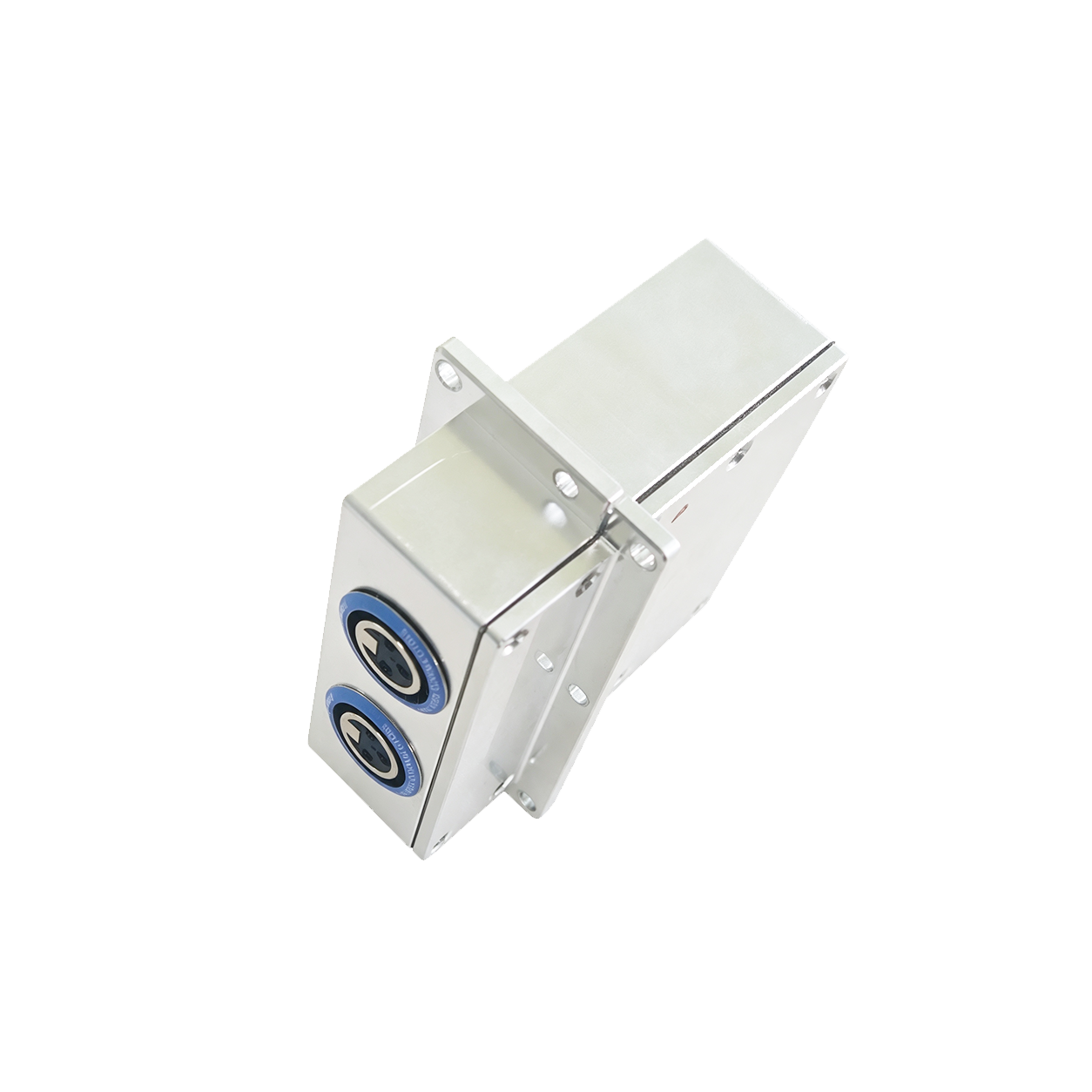

It integrates two standard XLR female connectors within a fully enclosed, precision-machined aluminum alloy shielding enclosure. Installed through the wall of a shielded box or RF/EMC test chamber, the connector enables balanced audio signal transmission between the inside and outside of the enclosure.

The built-in RF filtering structure helps suppress conducted RF interference and RF leakage along audio cables, reducing RF leakage through cable openings and maintaining the shielding effectiveness of the test enclosure.

The connector is suitable for RF, acoustic, and EMC testing of audio products such as speakers, Bluetooth headphones, microphones, and other professional or consumer audio devices.

Specifications

Typical Application Scenarios

• Balanced audio signal feedthrough for Bluetooth headphones, speakers, microphones, and other audio devices in shielded boxes
• Combined acoustic, RF, and EMC testing systems
• Automated RF testing of wireless audio products within the 700 MHz–12 GHz frequency range
• RF interference and spurious emission testing of professional audio equipment
• Balanced audio signal routing and RF isolation in RF/EMC test chambers

Selection Tips

This product is part of the audio RF filter connector series. Single-channel and multi-channel XLR configurations can be customized according to application requirements.

XLR audio interfaces can also be combined with DC power, RJ45, USB, and other connector types to create customized multi-interface RF filter connectors for specific test system requirements.
