Product Overview

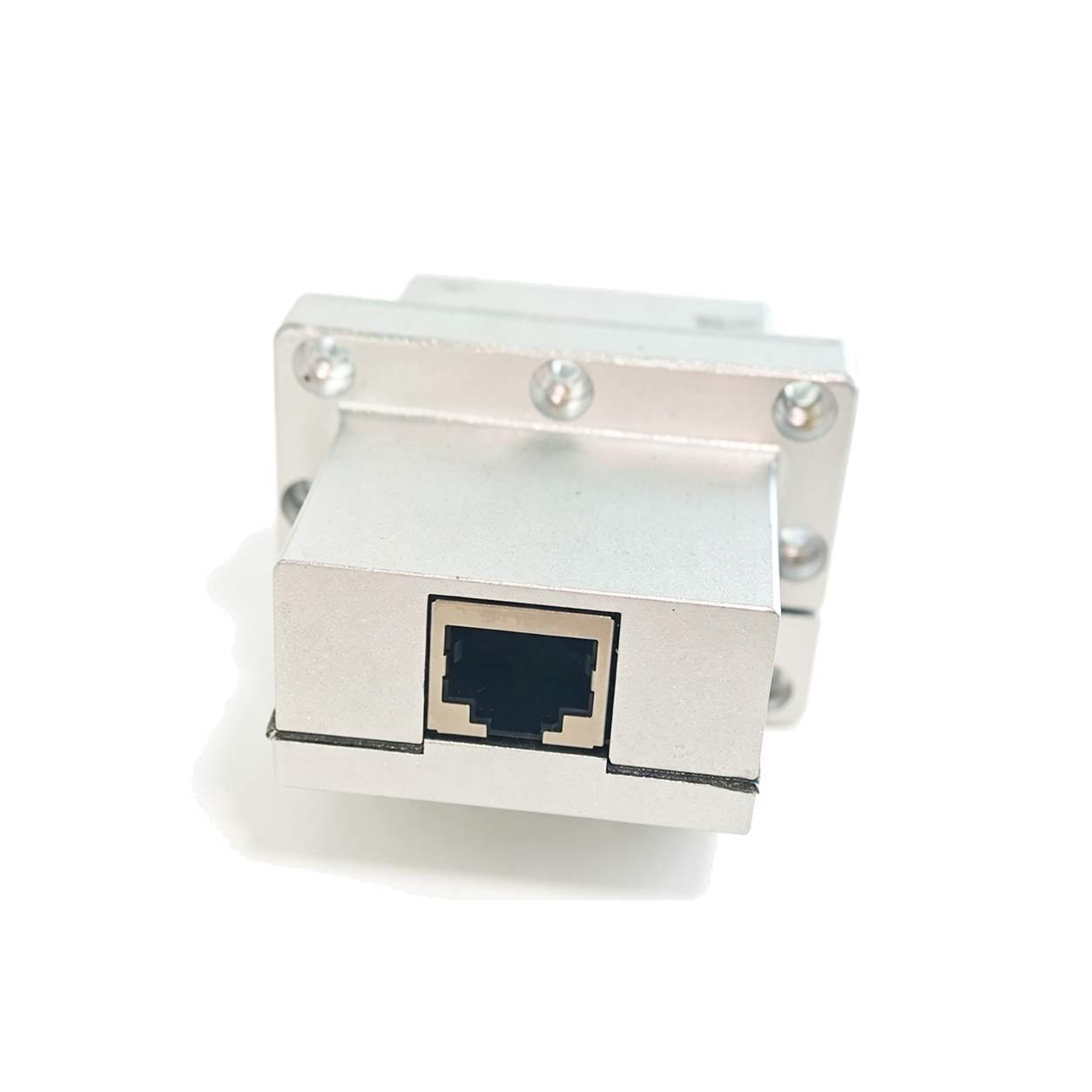

This RJ45 filter connector is a specialized RF electromagnetic isolation component designed for Ethernet communication applications. It adopts a split-type, all-metal sealed shielding cavity structure with a direct RJ45 port connection design and built-in high-performance RF filtering and suppression circuitry. It effectively suppresses broadband RF interference while maintaining high-speed 10G Ethernet communication, making it suitable for electromagnetic isolation applications such as shielded rooms, EMC testing environments, and RF automated testing fixtures.

Technical Specifications

Parameter Category	Parameter	Specification
RF parameters	Frequency Range	700 MHz-12 GHz
RF parameters	Isolation	>70 dB
Electrical Parameters	Rated Voltage / Current	50 V 0.2 A
Electrical Parameters	Data Transmission Rate	10 Gbit/s
Mechanical Parameters	Interface Type / Quantity	RJ45 Ethernet Port / 1 Port
	Overall Dimensions	56 mm × 74.40 mm × 38 mm
	Mounting Holes	8 × M3 Countersunk Holes

Typical Application Scenarios

✅ RF automated testing fixtures for wireless equipment production lines

✅ EMC electromagnetic compatibility testing, shielding rooms, and signal isolation transmission inside/outside shielding enclosures

✅ Wi-Fi, Bluetooth, and cellular communication module performance testing systems

✅ Anti-interference network communication solutions for precision testing instruments

Selection Tips

This model is a single-port standard RJ45 filter connector. For multi-port configurations, customized frequency ranges, electrical specifications, or special mechanical dimensions, please contact our technical team for customized development.
