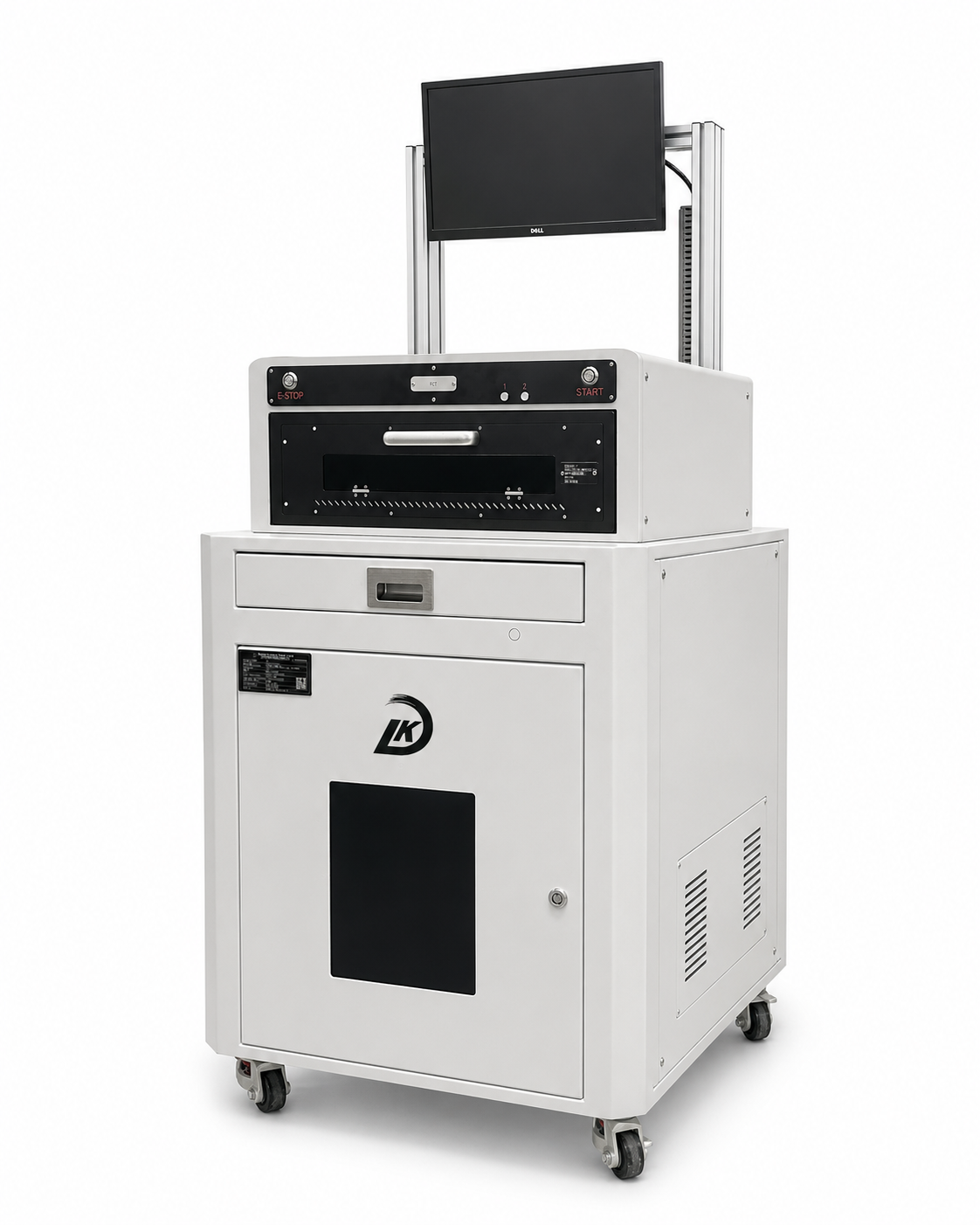

FCT Test Fixture (Flip-Cover Semi-Automatic Model)_Jiangsu Liankang Information Co., Ltd

Content

Product Overview

The FCT functional test system is designed for PCBA products after surface mount assembly. It simulates actual operating conditions and performs comprehensive functional and electrical verification.

The system supports functional tests including high/low voltage power supply, power consumption measurement, buttons, display, indicators, and audio/visual functions. It verifies wired and wireless communication interfaces such as UART, USB, Bluetooth, and WiFi.

By simulating temperature, humidity, voltage, and other sensor input signals, the system verifies ADC/DAC conversion performance, power output drive capability, and protection functions such as overvoltage and overcurrent protection.

The FCT system accurately identifies functional defects, communication failures, and drive abnormalities, providing an efficient quality control solution for the final stage of electronic manufacturing.

Technical Specifications

Parameter	Specification
Overall Dimensions	800 mm (L) × 600 mm (W) × 1750 mm (H)
Test Points	Up to 256 expandable test points
Operating System	Windows XP / Windows 7 / Windows 8 / Windows 10
Power Supply	200–240 VAC, 50–60 Hz, Single Phase
Fixture Type	Semi-automatic Flip Pneumatic Fixture
Test Signals	Current, Voltage, Frequency, PWM, Delay, GPIO
Maximum DUT Size	350 mm × 200 mm
Pneumatic Pressure	60 kg / 6 bar
Working Pressure	4–6 kg/cm²
Environment	0–40 ℃, 20–80% RH (non-condensing)
Optional Configuration	Signal expansion modules, scanning modules, data upload components

Test Functions

✅ Power supply and power consumption testing: High/low voltage simulation and static/dynamic power consumption measurement

✅ HMI functional testing: verification of button, display screen, and sound and light prompt functions

✅ Communication interface testing: UART, USB, Bluetooth, WiFi and other wired and wireless communication verification

✅ Signal simulation and acquisition: Simulate various sensor signals and test AD/DA conversion performance

✅ Power drive and load capability testing: power output, load capacity testing

✅ Protection circuit verification: reliability testing of protection function under abnormal working conditions such as overvoltage and overcurrent

✅ General Electrical Measurement: current, voltage, frequency, PWM waveform, signal delay, GPIO port control

Customization Instructions

Standardized equipment platforms are available for mass production applications. Customized fixtures, probe modules, and test programs can be developed based on customer PCB drawings.

We provide technical support for test solution evaluation, sample debugging, and production line integration.
