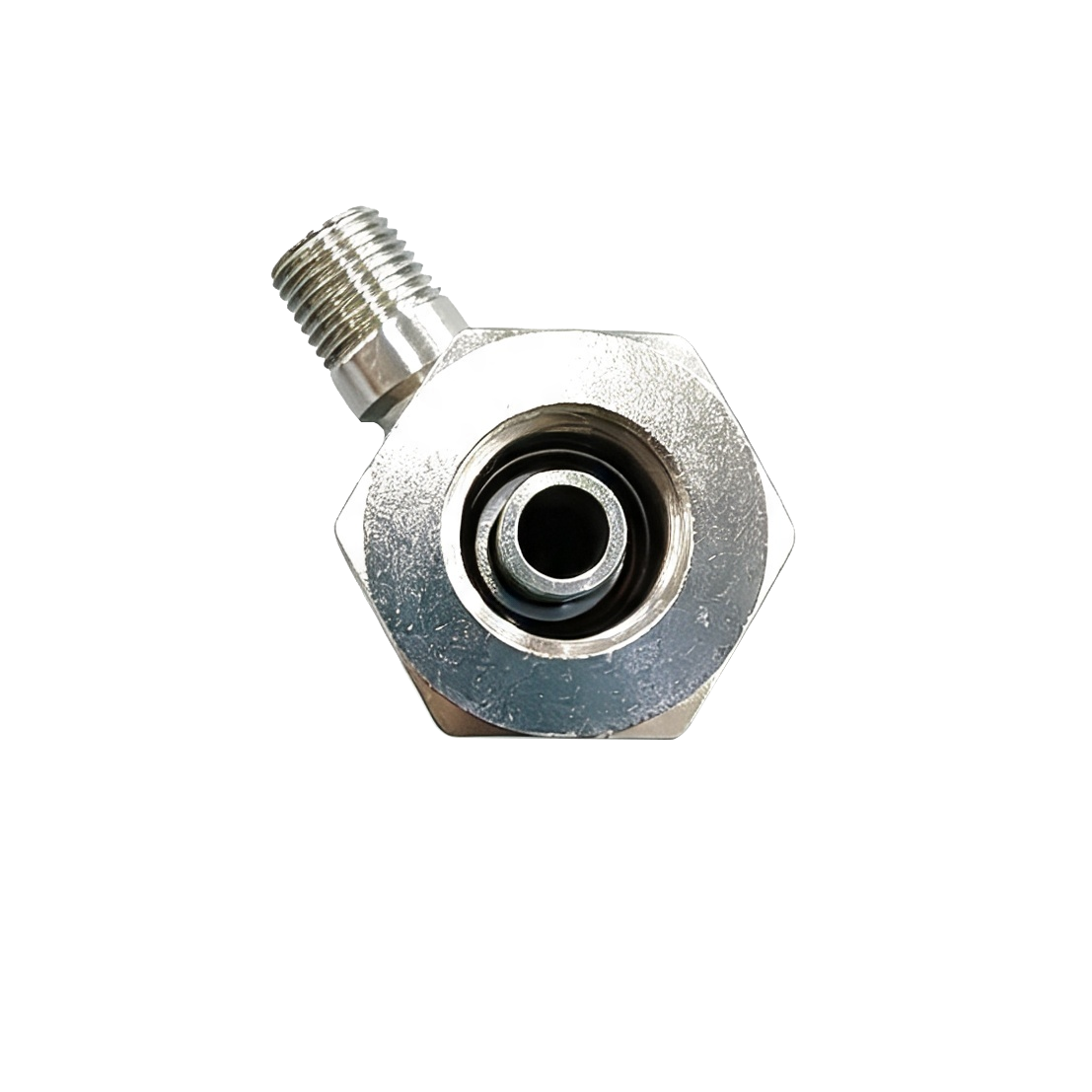

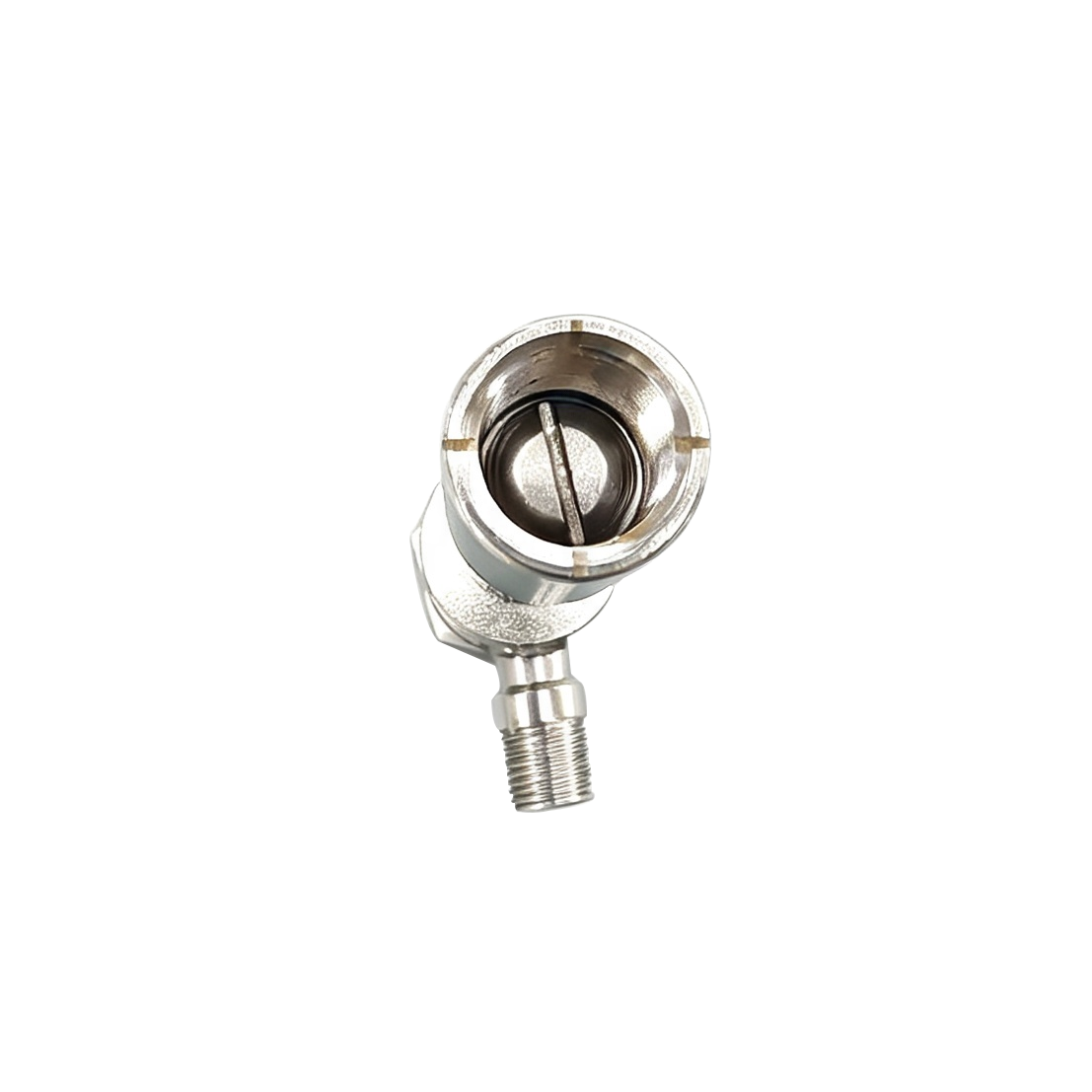

LK Small Vortex Tube

Pure pneumatic refrigeration: only requires clean compressed air, no power supply or refrigerant, ready to use immediately

Minimalist structure: no bearings, no pistons, almost maintenance free, long service life

Temperature adjustable: The hot end is equipped with a regulating valve, allowing for free adjustment of the ratio of the cold end outlet temperature to the cold air

Compact in size, suitable for localized cooling in small workstations

Content

Product Overview

A vortex tube separates cold and hot air streams by introducing compressed air.

Without refrigerants or moving parts, it provides localized precision cooling through a passive cooling mechanism.

The product is available in two series: S-type and M-type, meeting different cooling capacity requirements.

Standard operating inlet pressure: 6.9 bar.

Cooling Performance Parameters

No.	Model	Inlet Pressure (Bar)	Gas Consumption (SCFM)	Air Consumption (SLPM)	Cooling Capacity (Btu/h)	Cooling Capacity (Kcal/h)	Noise (dB)	Series
1	LK-G-001	6.9	8	225	500	125	52	S-type
2	LK-G-002	6.9	2	60	150	45	50	S-type
3	LK-G-003	6.9	4	112	275	66	50	S-type
4	LK-G-004	6.9	6	100	556	136	50	S-type
5	LK-G-005	6.9	10	285	652	165	52	S-type
6	LK-G-006	6.9	15	430	1000	255	55	S-type
7	LK-G-007	6.9	20	562	1270	318	55	M-type
8	LK-G-008	6.9	25	710	1705	430	58	M-type
9	LK-G-009	6.9	30	855	2015	506	58	M-type
10	LK-G-010	6.9	40	1126	2806	706	60	M-type

Selection Reference

S-type:

Small to medium cooling capacity with low noise operation, suitable for small components and precision testing stations.

M-type:

High airflow and high cooling capacity, designed for centralized cooling applications for high-power devices.
