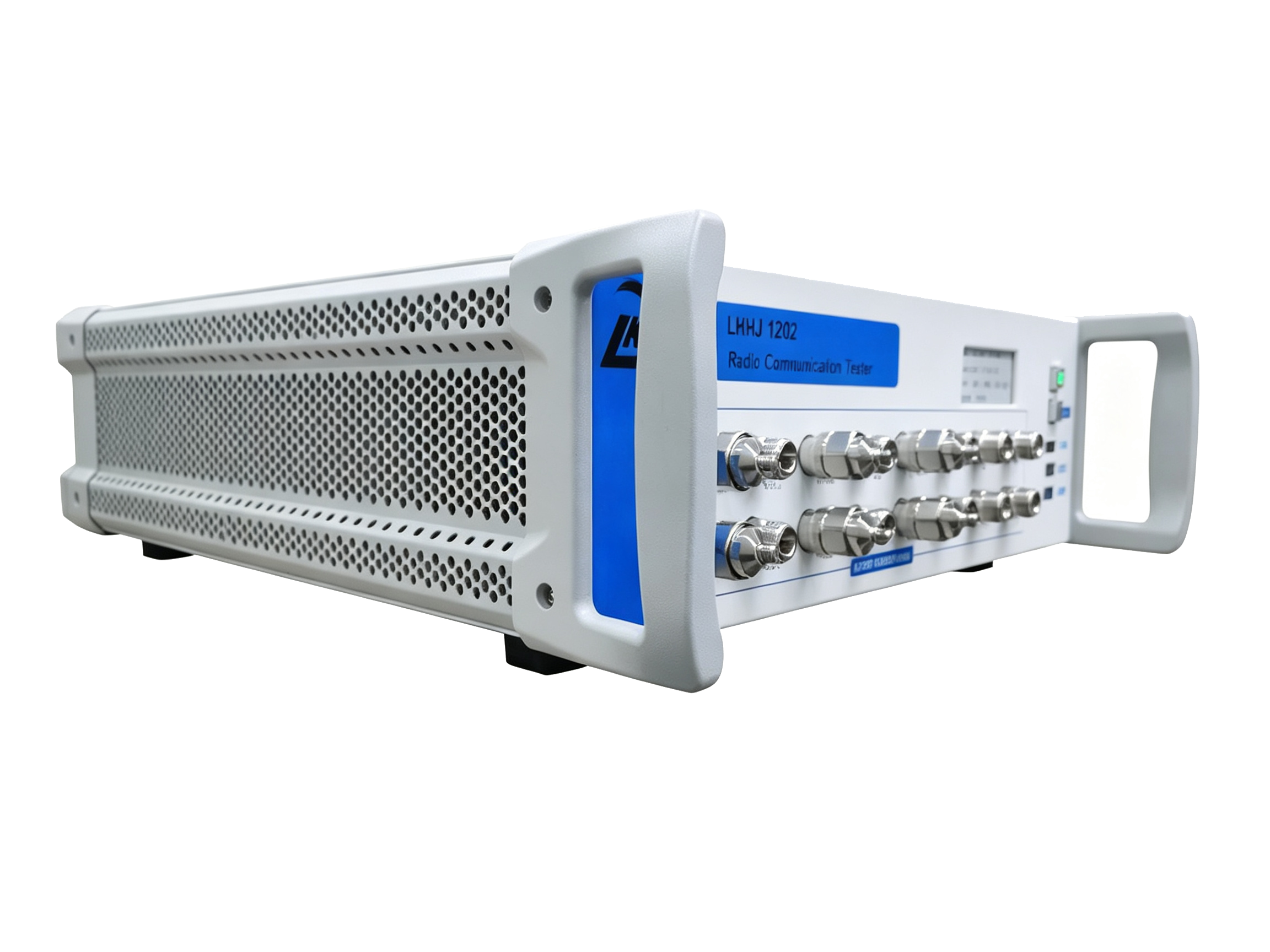

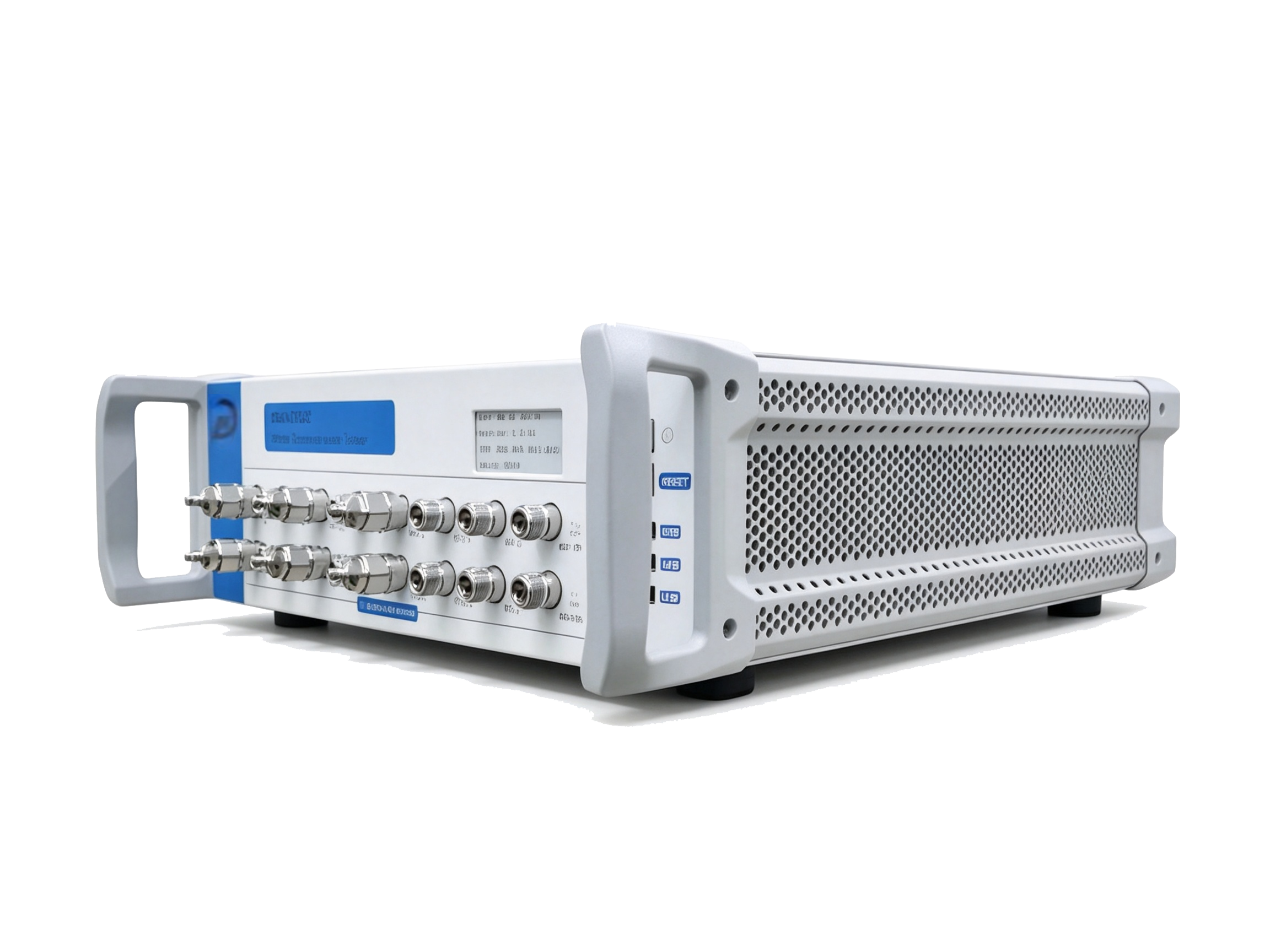

Product Overview

✅ Supports Bluetooth 5.0 specification

✅ Supports Wi-Fi 5, Wi-Fi 6, and Wi-Fi 7 testing, with future expansion capability for LTE and 5G NR testing.

✅ Supports Ethernet communication

✅ Supports SCPI programming interface

✅ Supports HDMI and DP interfaces for displays

✅ Supports 8-port parallel testing

✅ Dimensions: 474 mm (W) × 144 mm (H) × 531.5 mm (D)

✅ Weight : 23 kg

Key Performance Specifications

✅ VSG/ VSA frequency range: 400 MHz to 8500 MHz

✅ Modulation/Demodulation Bandwidth: 500 MHz

✅ VSG Output Power Range: -130 dBm to 0 dBm

✅ VSA Input Power Range: -20 dBm to +30 dBm

✅ VSG Power Accuracy: < ±1 dB (Avg.)

✅ VSA Power Accuracy: < ±1 dB (Avg.)

✅ VSG/VSA Spurious Emission: ≤ -35 dBc

✅ Port VSWR:

400 MHz–5000 MHz: <1.6

5000 MHz–8500 MHz: <2.0

✅ Port Isolation: >110 dB

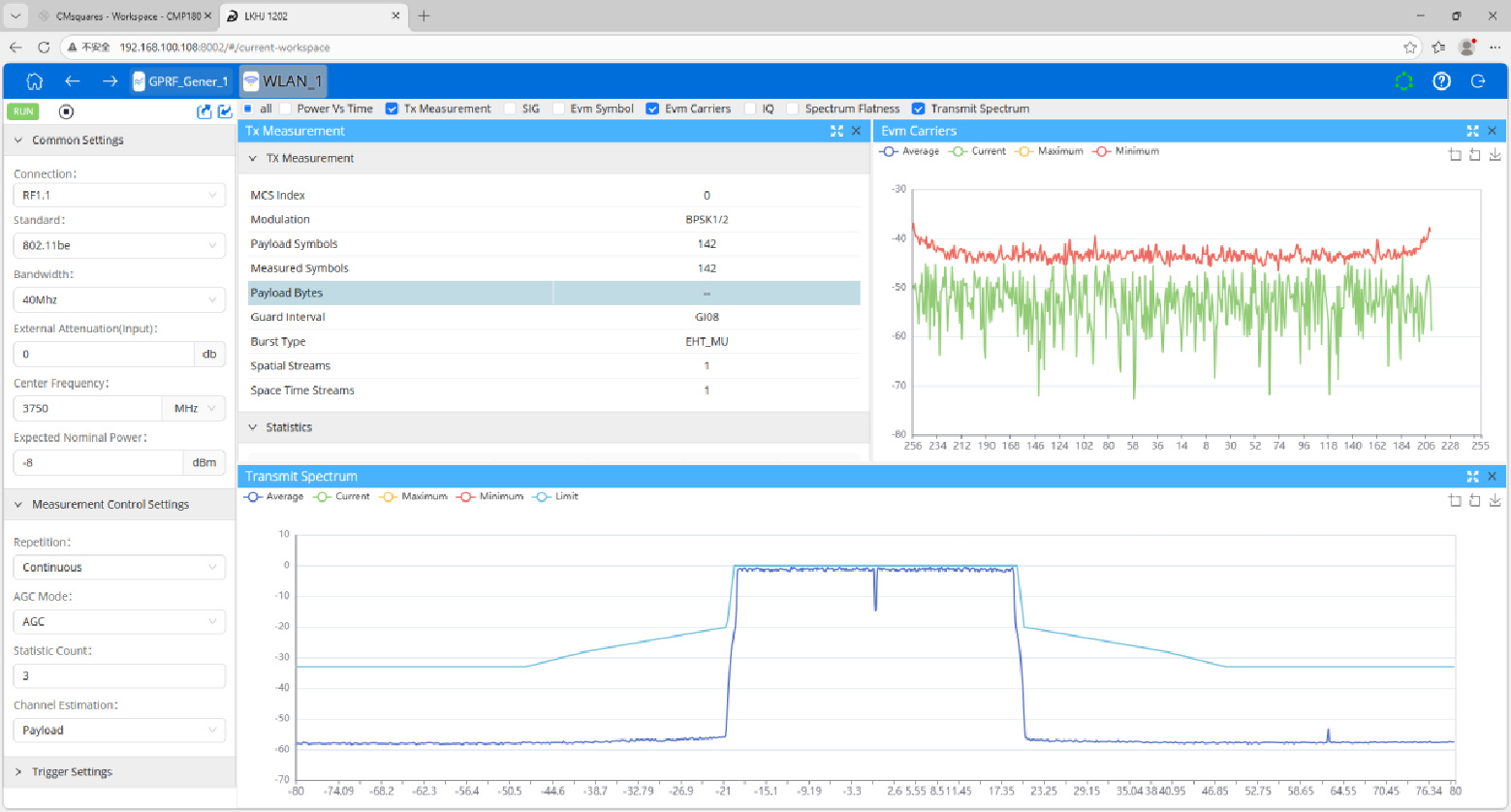

Dedicated Testing Software

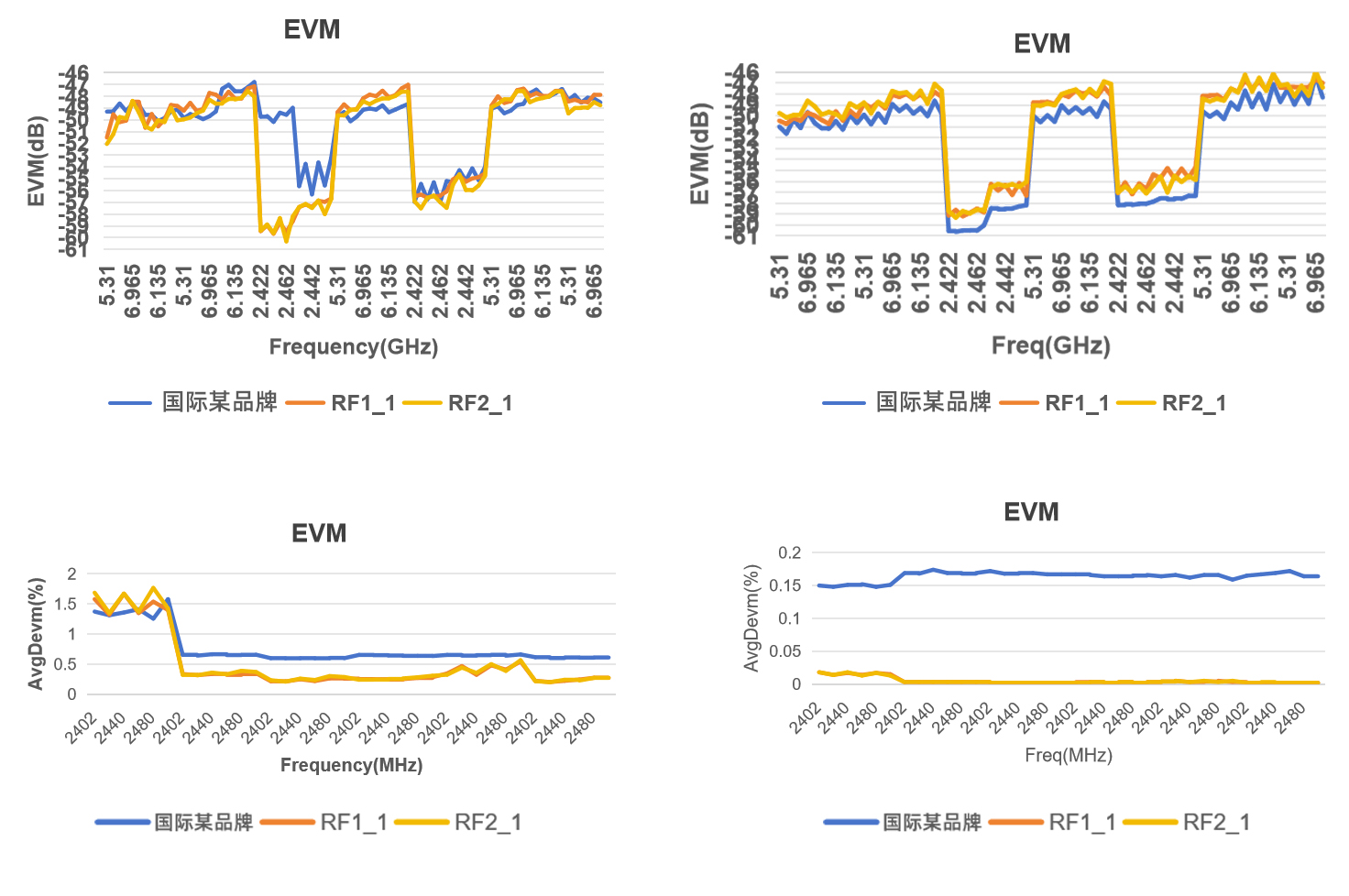

Performance Comparison (LKHJ1202 vs. International Reference Instrument)
