Product Overview

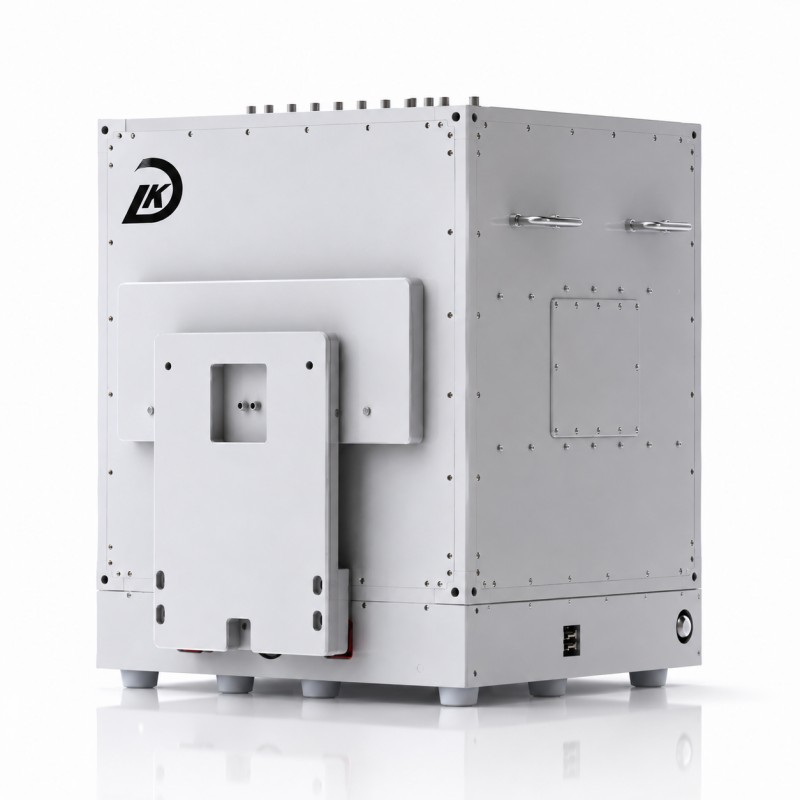

The LK-7201 Shielding Box is a compact dedicated shielding enclosure for OTA radiated testing, mainly used for OTA performance verification of wireless communication modules and small smart terminal antennas. It features a standard 420 mm × 420 mm × 420 mm cubic internal cavity, with an operating frequency range of 700 MHz–6 GHz and shielding effectiveness of >70 dB. The enclosure supports two opening/closing options: manual door and pneumatic door, meeting both laboratory R&D debugging and automated production line batch testing requirements. The internal space can accommodate products under test, small turntables, test antennas, and positioning fixtures, providing a stable electromagnetic isolation environment for OTA tests including TRP, TIS, and antenna radiation pattern evaluation.

Parameter table

Typical application scenarios

✅ WiFi/Bluetooth modules, TWS earphones, smartwatch, network camera OTA testing

✅ R&D verification of IoT smart home modules, wireless communication terminal antennas, and final inspection of production lines

✅ Comparison of antenna schemes and laboratory verification testing of antenna radiation patterns

✅ Dual-purpose applications covering laboratory R&D testing and automated production line OTA testing

OTA Shielding Box Series Comparison:

 LK-7201: 420 mm cubic cavity, 16 RF interfaces, suitable for small wireless terminal OTA testing. LK-7201A: 420 mm cubic cavity, optimized interface configuration with 1 USB port, suitable for customized OTA testing requirements. LK-7202-OA: 520 mm cubic cavity, larger internal space, suitable for OTA testing of larger wireless products and automated production applications.
