Product Overview

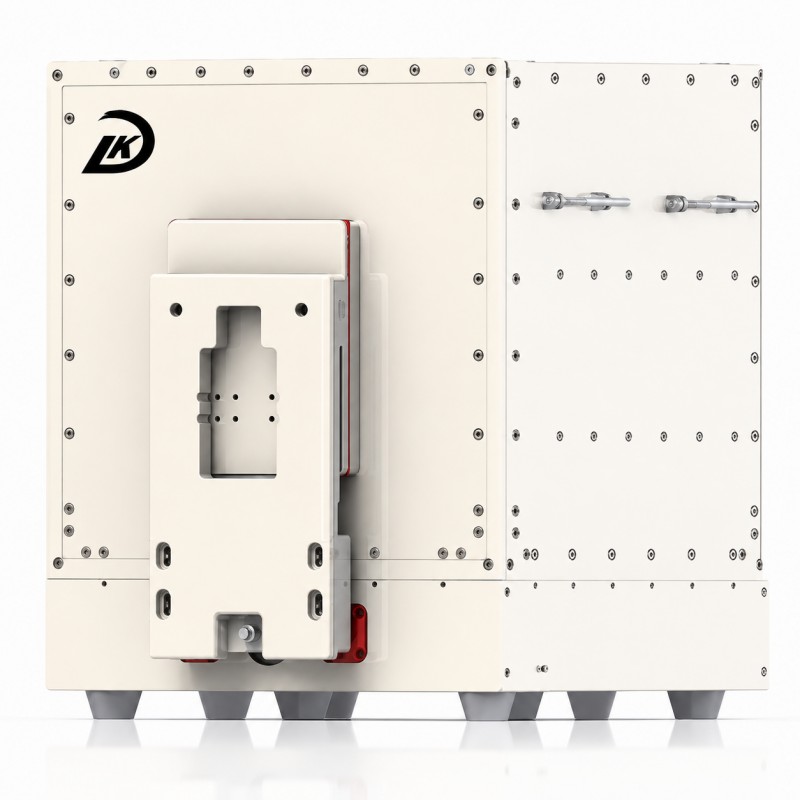

The LK-7202-OA Shielding Box is a large pneumatic RF shielding enclosure specially developed for OTA radiated testing of wireless products.It features a 520 mm × 520 mm × 520 mm cubic internal cavity, providing shielding effectiveness of ≥70 dB and an operating frequency range of 0.6 GHz–6 GHz. The enclosure provides excellent electromagnetic isolation, effectively reducing external interference and minimizing RF signal leakage from the chamber, creating a controlled electromagnetic environment for antenna radiation performance testing.With a fully automatic pneumatic opening/closing structure, it is suitable for production line automation integration and widely used for OTA antenna performance testing, TRP/TIS measurement, and receiver sensitivity testing of Wi-Fi, Bluetooth, IoT modules, smart terminals, routers, and other wireless products.

Technical Specifications

Parameter Category	Parameter	Specification
RF shielding parameters	Effective Shielding Frequency Range	0.6 GHz ~ 6 GHz
RF shielding parameters	Shielding effectiveness	≥70 dB
Mechanical Dimensions	Internal cavity size	520 (W) × 520 (D) × 520 (H) mm
	Overall Dimensions	613 (W) × 613 (D) × 711 (H) mm
	Supported Testing Applications	OTA Antenna Radiated Testing
Function Configuration	Opening/Closing Method	Pneumatic Automatic Opening/Closing
Standard Interfaces	Standard configuration interface	SMA Connectors × 12, DB9 Connector × 1
Scalability	Interface Expansion	Supports customization of various filtering feedthrough connectors.

Application Scenarios

✅ Wi-Fi modules, Bluetooth modules, smart wearables, cameras, and routers OTA TRP/TIS testing

✅ Automated production line detection of antenna radiation performance for IoT wireless terminals and smart home devices

✅ 2.4 G/5 GHz dual band wireless product antenna research and development verification, directional pattern testing

✅ Wireless communication module radiation emission and reception sensitivity OTA automated batch production testing

✅ Automated production line online OTA testing

✅ Laboratory antenna research and development, antenna scheme comparison and verification testing

Selection Tips

The LK-7202-OA is a dedicated OTA radiated testing shielding box (pneumatic version, 0.6–6 GHz, ≥70 dB shielding effectiveness), which is different from LK-6400/LK-6401/LK-6402 series board-level conducted testing shielding boxes. LK-64XX Series: Focuses on PCB/module conducted RF testing, including RF signal routing, parameter calibration, and functional verification. LK-7202-OA: Focuses on antenna radiated performance testing, including OTA TRP/TIS measurement, radiation pattern evaluation, and wireless terminal RF performance verification.
