Main functions

The system features a real-time monitoring dashboard that centrally displays equipment connection status, operating data, tray and temperature information, Bin classification, and alarm records, providing a clear overview of the entire system status.

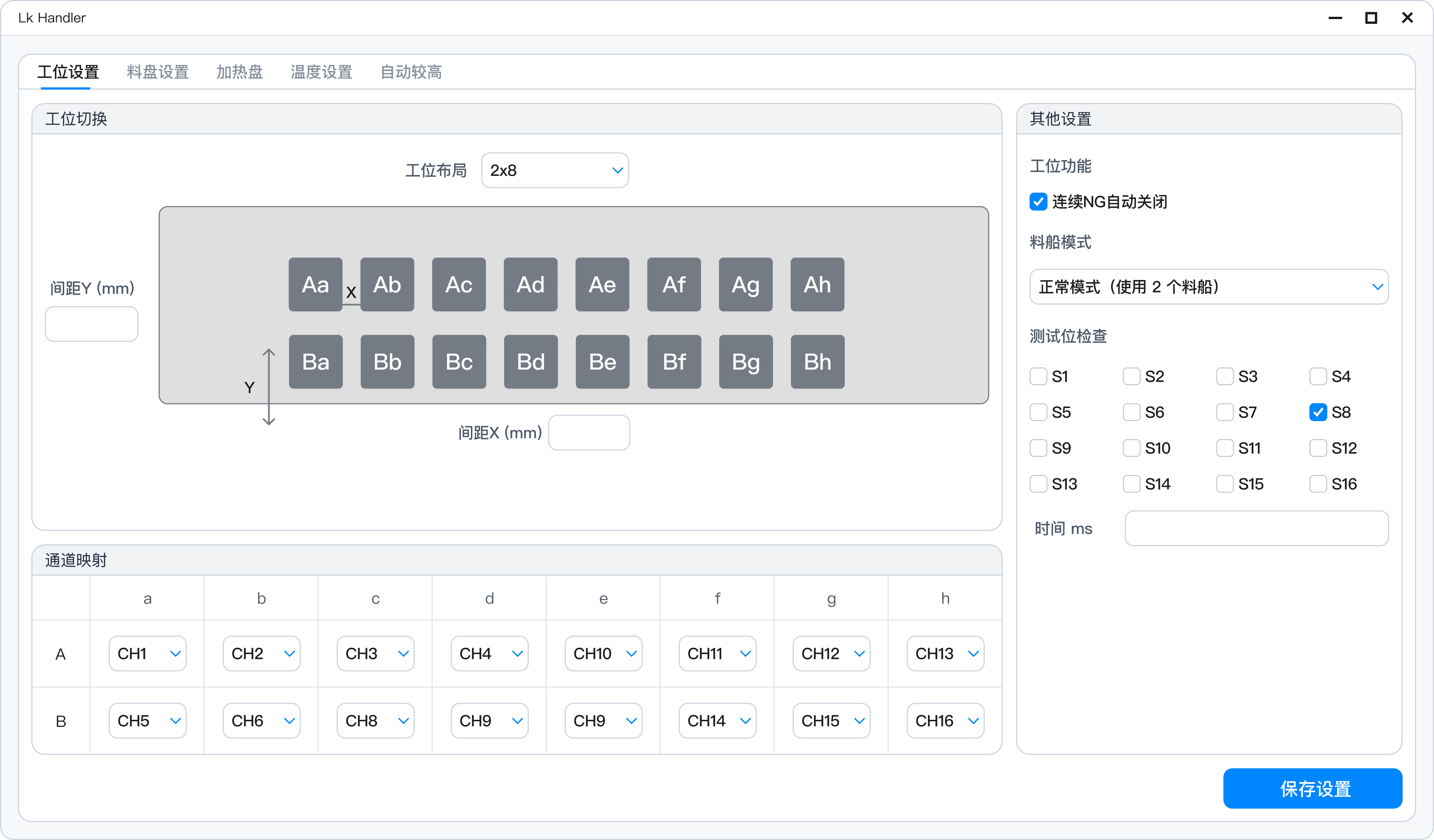

It supports multiple test-site layouts ranging from 1 × 2 to 2 × 8, with configurable X/Y spacing and channel mapping to accurately match different tester configurations.

Multiple tray types are supported, including input trays and automatic/manual output trays. Independent parameter settings are also available for dual trays and heating trays.

Recipe and file management functions include creation, copying, import, export, and quick loading, enabling fast product changeover. Test parameters such as test delay, idle time, consecutive Fail alarm limits, yield alarm thresholds, and Bin thresholds can be flexibly configured.

The system supports multiple operating modes, including single-cycle, continuous, trigger-based, and conditional modes, covering equipment debugging, small-batch verification, and mass-production applications.

During operation, the system records tray handling information, Bin counts, Pass/Fail quantities, yield data, and other production information in real time.

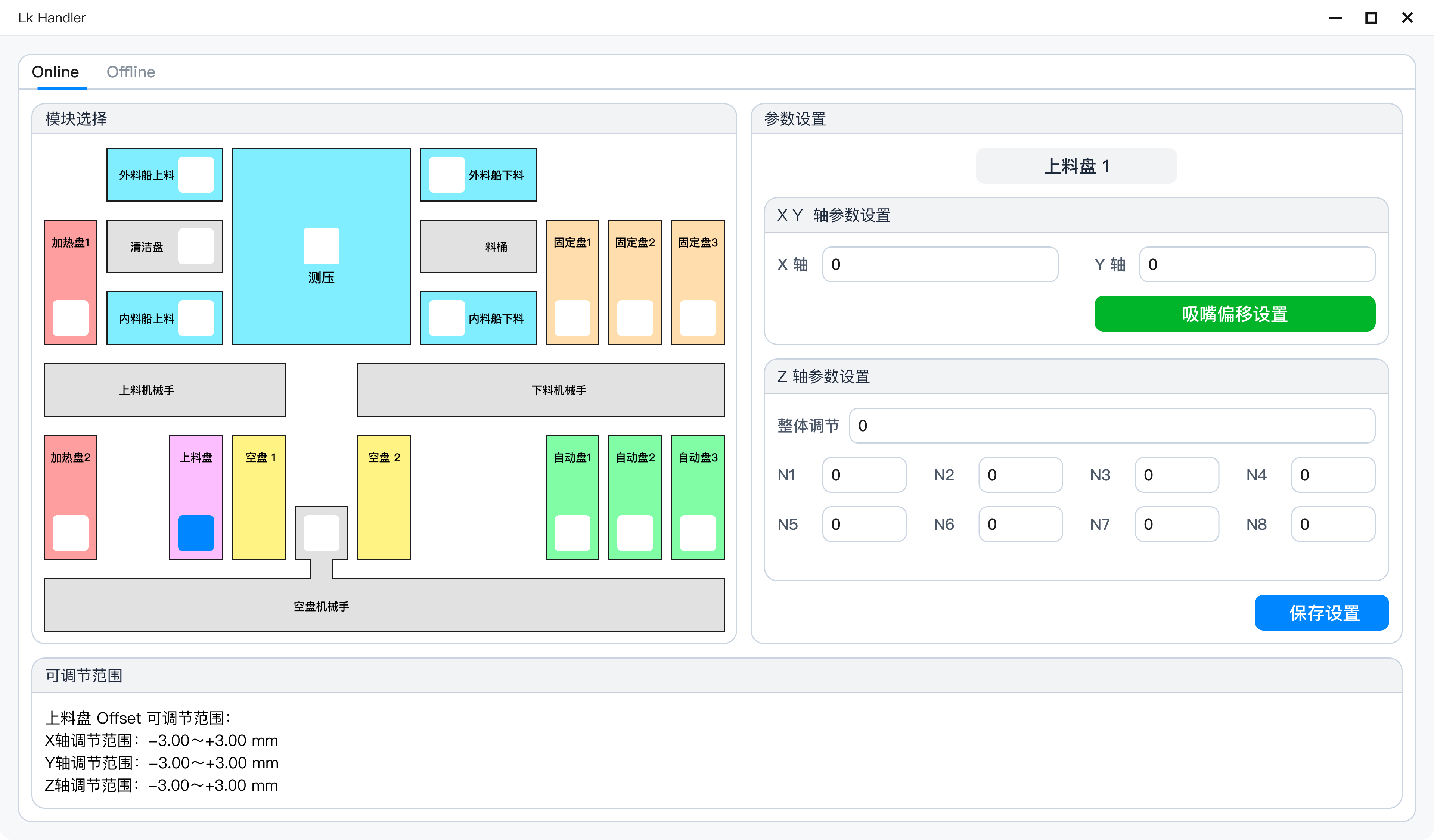

Motion parameters for each module—including the input tray, transfer tray, shuttle, robotic arm, and output tray—can also be independently configured to accommodate different equipment and process requirements.

Technical Features

- Cross platform compatibility

Supports one-click installation without additional software dependencies, simplifying deployment and maintenance.

- Multi-Protocol Communication
Built-in support for TCP/IP, TTL, GPIB, RS-232, and other communication protocols enables integration with various handlers, sorters, and test systems.

- Multi-Site Parallel Testing
Supports test-site configurations of up to 2 × 8, with All-Site and Single-Site test modes to improve test efficiency and production throughput.

- Real-Time Visualization
The monitoring dashboard displays tray status, temperature information, Bin distribution, alarm history, and other key data through intuitive charts for rapid status monitoring and exception handling.

- Flexible Configuration
Test-site layouts, tray parameters, heating tray settings, recipe files, and other system parameters can be flexibly configured to accommodate different equipment models and product specifications.

- Production Data Management
Supports batch management and complete storage of job records, test statistics, and historical production data for anomaly traceability and production analysis.

- User Permission Management
A multi-level user access control system helps ensure operational security and standardized system management.
