01 Key Advantages

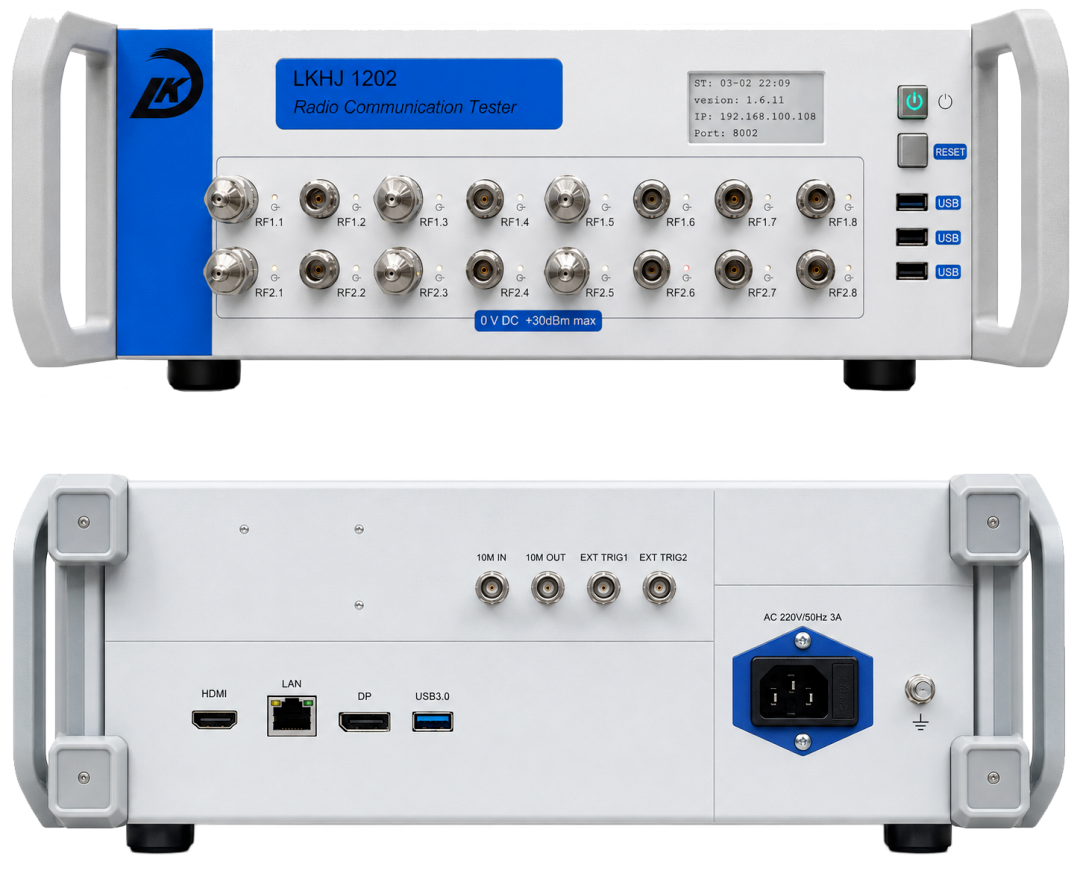

The LKHJ1202 Wireless Communication Tester integrates multi-protocol testing capabilities and can replace multiple single-function test instruments, simplifying test system deployment.

The tester natively supports the Bluetooth 5.0 specification.

It supports Wi-Fi 5, Wi-Fi 6, and Wi-Fi 7 testing, with hardware reserved for future expansion. The system can be upgraded to support LTE and 5G NR testing, adapting to evolving product development requirements.

It supports network communication and SCPI programming interfaces, enabling integration with automated test systems for standardized batch testing.

Equipped with HDMI and DP display interfaces, the tester can be directly connected to a monitor, supporting standalone workstation operation and real-time data monitoring.

It supports 8-port parallel testing, enabling simultaneous testing of multiple devices under test (DUTs) and improving mass production test efficiency.

The equipment dimensions are 474 mm (W) × 144 mm (H) × 531.5 mm (D), with a total weight of 23 kg. Its compact design supports standard rack installation and flexible deployment in laboratories and production environments.

02 Performance Parameters

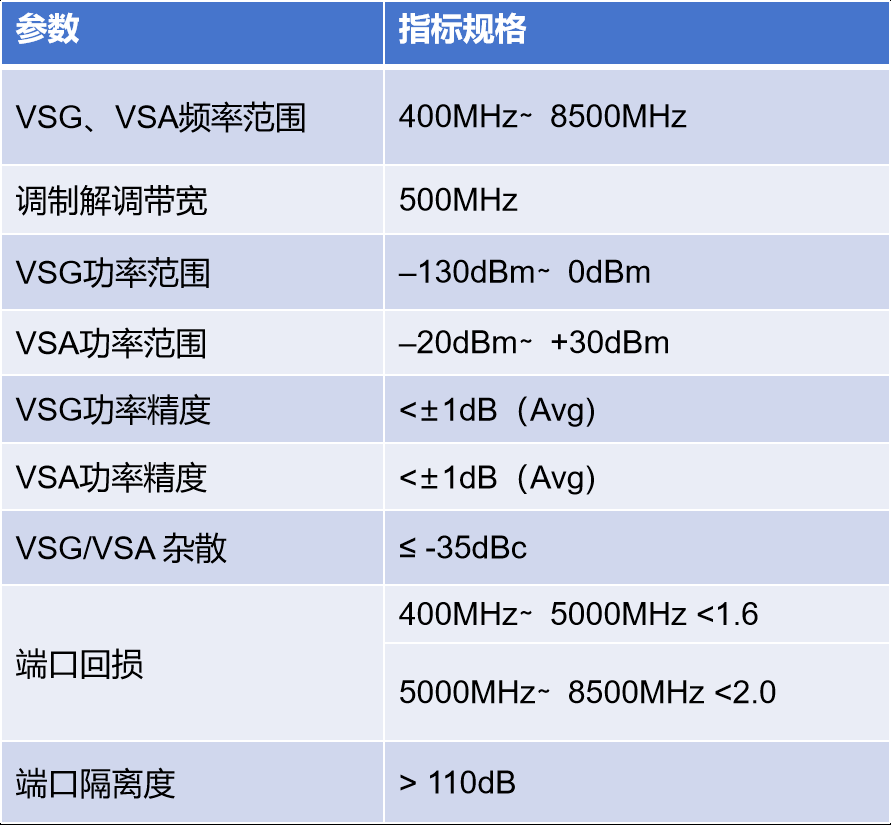

The LKHJ1202 Wireless Communication Tester is based on core VSG signal generator and VSA signal analyzer modules, providing stable RF signal generation, transmission, and data analysis capabilities. Its RF performance parameters comply with industry-standard testing requirements, meeting the needs of R&D performance verification and production-line consistency testing. Wideband frequency coverage supports testing requirements for mainstream Bluetooth and Wi-Fi devices. Excellent port isolation and return loss performance effectively reduce signal crosstalk during multi-port parallel testing, ensuring stable and reliable measurement results.

03 Instrument Comparison

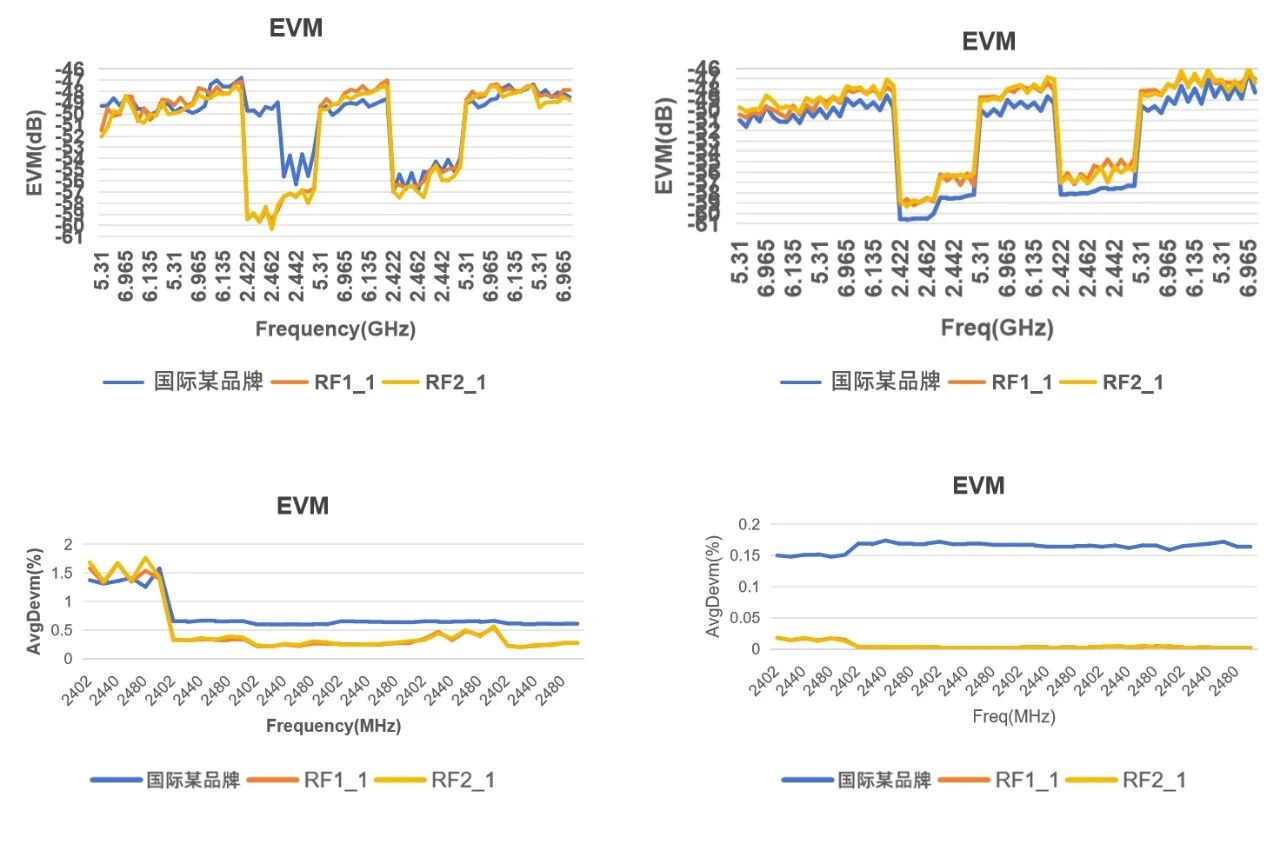

This comparison evaluates the LKHJ1202 Wireless Communication Tester across mainstream frequency bands including 2.4 GHz, 5 GHz, and 6 GHz, benchmarking its performance against comparable products from leading international brands.

The actual test results demonstrate that the core testing performance of the LKHJ1202 Wireless Communication Tester is comparable to leading commercial instruments in the industry. The measurement curves of both devices show highly consistent trends. The LKHJ1202 provides stable full-band measurement results without obvious performance fluctuations, while maintaining good multi-channel consistency. These results meet the standardization requirements for wireless product development, performance verification, and mass production testing.

04 Application Scenarios

R&D applications: RF specification verification, performance testing, and iterative debugging of wireless modules and smart hardware.

Mass production applications: Leveraging 8-port parallel testing and automation integration capabilities to support high-volume testing requirements for smart homes, wearable devices, and wireless terminals.

Research and education applications: The tester can serve as fundamental equipment for wireless communication research and experimental teaching in universities and research institutions.

05 Test Software

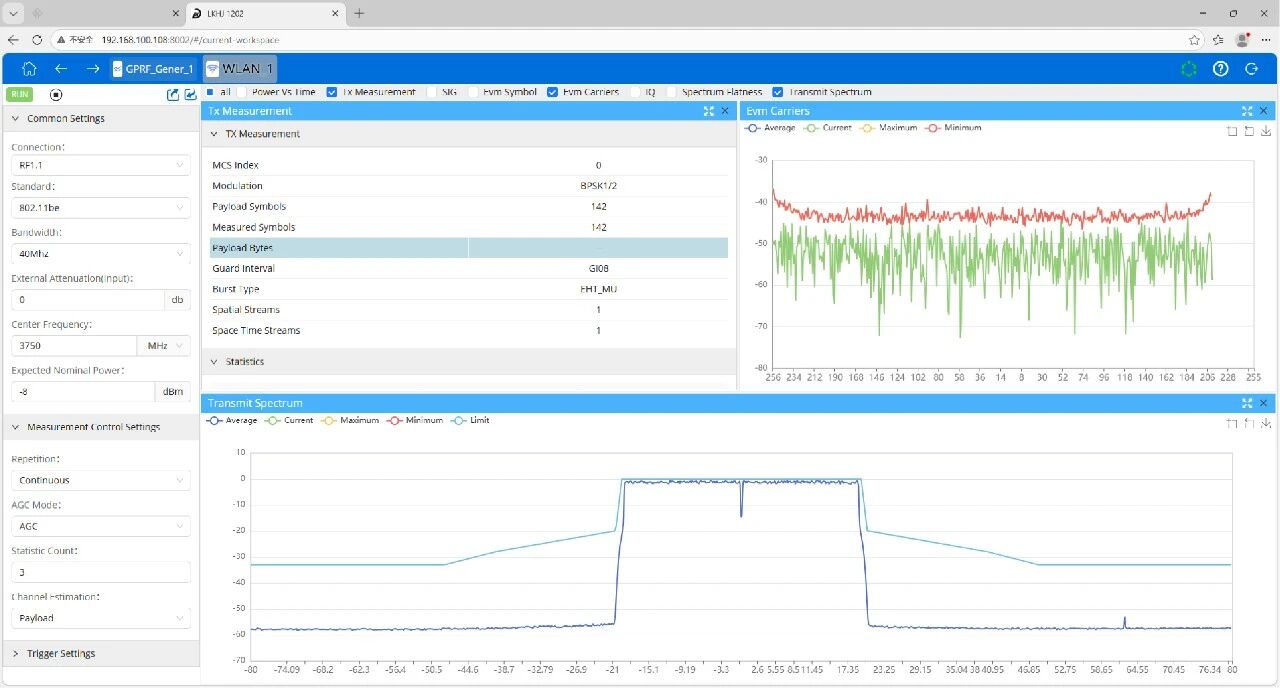

The LKHJ1202 Wireless Communication Tester is equipped with dedicated test software featuring a visual operation interface and supporting functions such as parameter configuration, data acquisition, and result export. The software simplifies test operation and improves testing efficiency.

Contact Us

If you would like to learn more about the LKHJ1202 Wireless Communication Tester, request product information, arrange prototype testing, or discuss customized test solutions, please feel free to contact us.

Our team will provide professional technical consultation and customized solutions based on your testing requirements, supporting RF product development, validation, and mass production testing.
