In the process of electronic product development, functional testing, and equipment power supply, the power supply not only needs to be "available", but also needs to consider output specifications, ripple noise, interface methods, volume, and usage requirements under different loads.

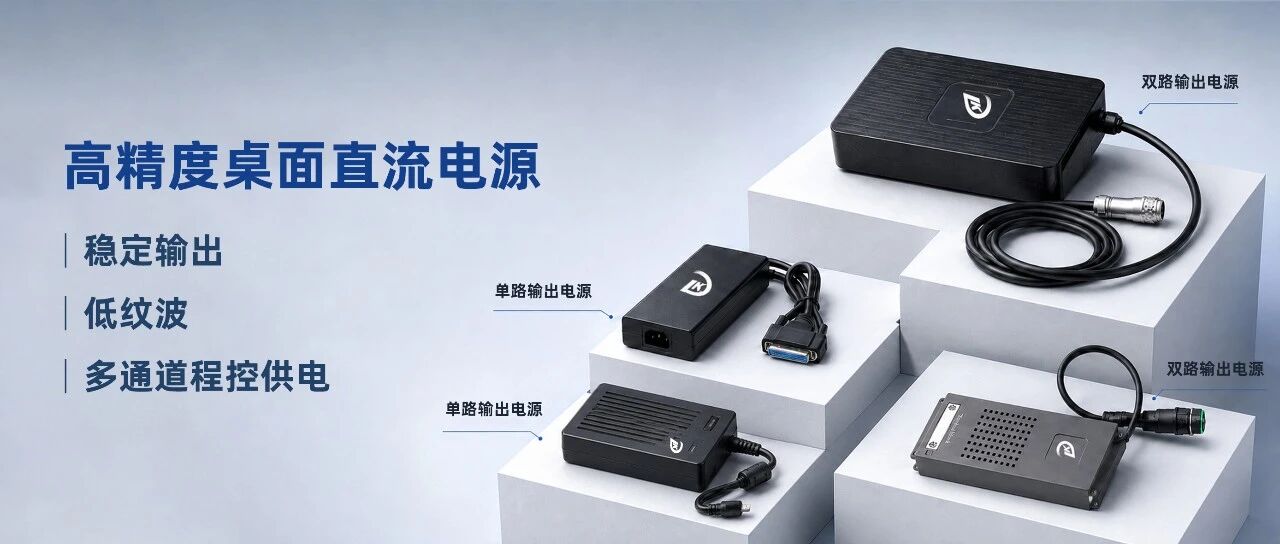

For different power and output forms, Liankang Information's existing power products cover 35W-220W desktop power supplies, as well as 550W dual output power supplies, which can provide more flexible power supply options for different devices.

Low ripple output, interface can be selected according to requirements

This series of desktop power supplies has peak to peak ripple and noise controlled within 1% of the output voltage, providing pure and stable power supply, meeting the strict power supply requirements for research and development testing and precision instruments. At the same time, the power supply supports multiple optional output connectors from 01 # to 05 #, which can match the interface specifications of different devices. When selecting, in addition to power, voltage and current, remote sampling, connector type and overall size can also be combined to flexibly customize the adaptation plan.

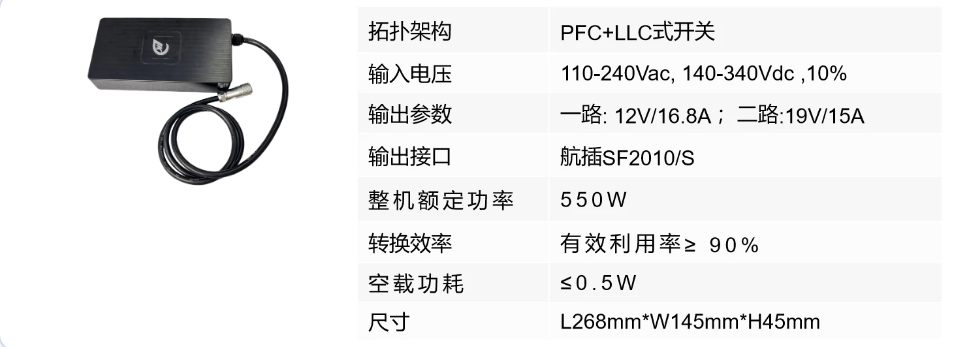

550W dual output power supply | compensates for the limitations of single power supply

For applications with two different power supply requirements inside the device, dual output power supplies can also be selected. This product adopts a desktop structure, and its main parameters include:

A power supply that provides two different voltage outputs simultaneously can reduce the wiring and space occupation issues caused by multiple power supply combinations, making it more suitable for devices with multiple power supply requirements. At the same time, this product adopts a black POM shell and meets the requirements of low ripple output and desktop installation.

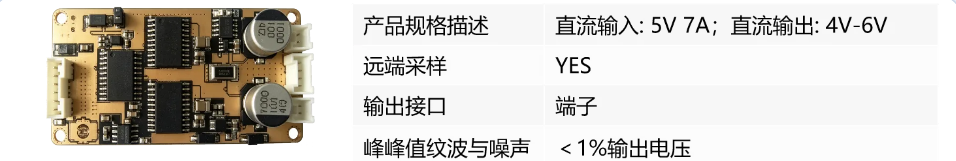

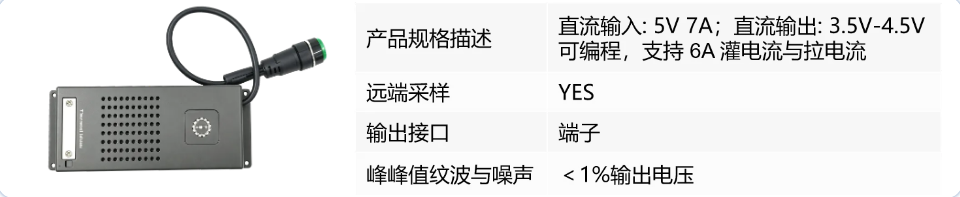

◆ Programmable SINK&SOURCE power module

In addition to traditional power output, Liankang Power's product system also includes two power modules with Remote Sense:

Among them, SINK&SOURCE bidirectional capability+programmable control not only allows the power supply to provide conventional power supply, but also provides more choices for testing systems that require more flexible power control methods.

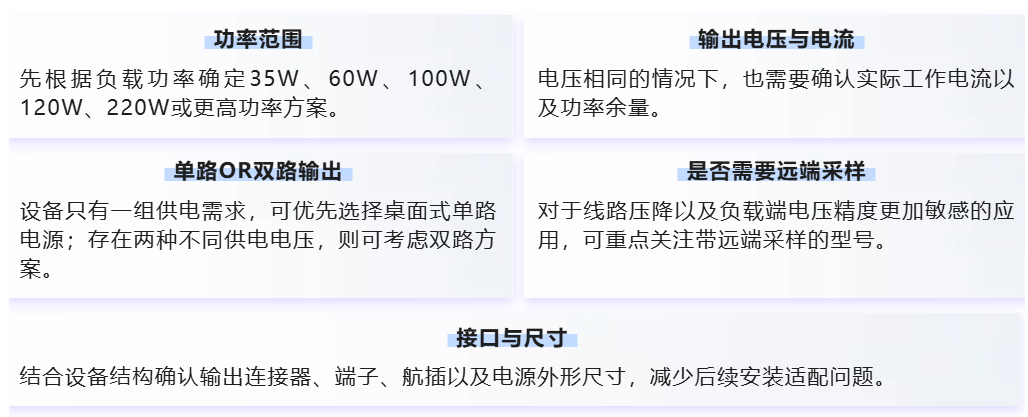

◆ Power selection mainly depends on these 5 parameters

When facing different power supply models, the following parameters can be prioritized for confirmation:

From 35W-220W desktop power supplies, to 550W dual output power supplies, and to power modules that support SINK&SOURCE and Programmable control, different products correspond not only to power differences, but also to differences in device power supply methods and testing requirements.

Therefore, power selection cannot only be based on power size, but also needs to be combined with actual load, output form Remote Sense、 Taking into account the interface method and overall structure of the machine. Liankang Information can provide power selection suggestions, parameter customization, and scheme evaluation based on specific application needs, helping equipment match more suitable power supply schemes. If you need to know the specific model or selection plan, please feel free to contact Liankang Information.
